TMDS181: About signal condition comparison between " Normal Working" and " Swap Working"

Hide

Guru 21045 points

Part Number: TMDS181

Hi Team,

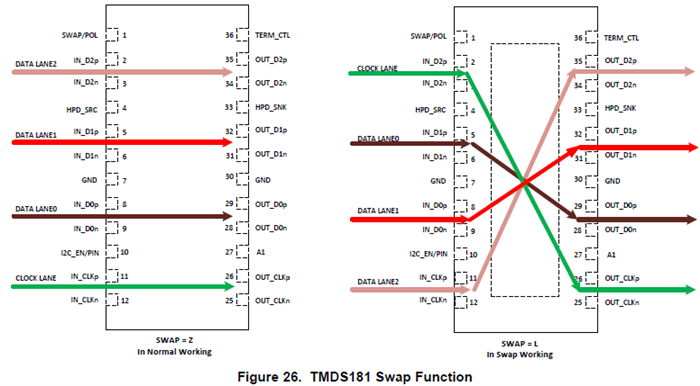

Our customer are evaluating TMDS181 in normal working.

However, they have to use TMDS181 in swap working because location of TMDS181 was changed.

Therefore, they would like to know whether the signal condition of the “Normal working” is the same as “Swap working”.

Could you please let us know if you have any comparative data of eye pattern?

Regards,

Kanemaru

0 Moises Garcia over 8 years ago

Hi Kanemaru,

The behavior of Normal working and Swap working(lane swap) is the same.

This swapping is done in Rx stage, the eye patterns will be the same for both configurations.

Regards

0 Hide over 8 years ago in reply to Moises Garcia

Guru 21045 points

Hi Moises-san,

Thank you for the information.

I understand. Thank you very much.

Regards,

Kanemaru
