DS125BR820: txterm.s4p and rxterm.s4p

Kai Hsiao
Guru 12675 points
Part Number: DS125BR820

Dear Sir

May I know what's transmitter termination and receiver termination's mean ,is it mean RLGC termination circuit ?

I can't make sure our simulation is right ,could you provide a example to me?

Thanks

  • 0
    TI__Mastermind 43795 points

    Hi Kai,

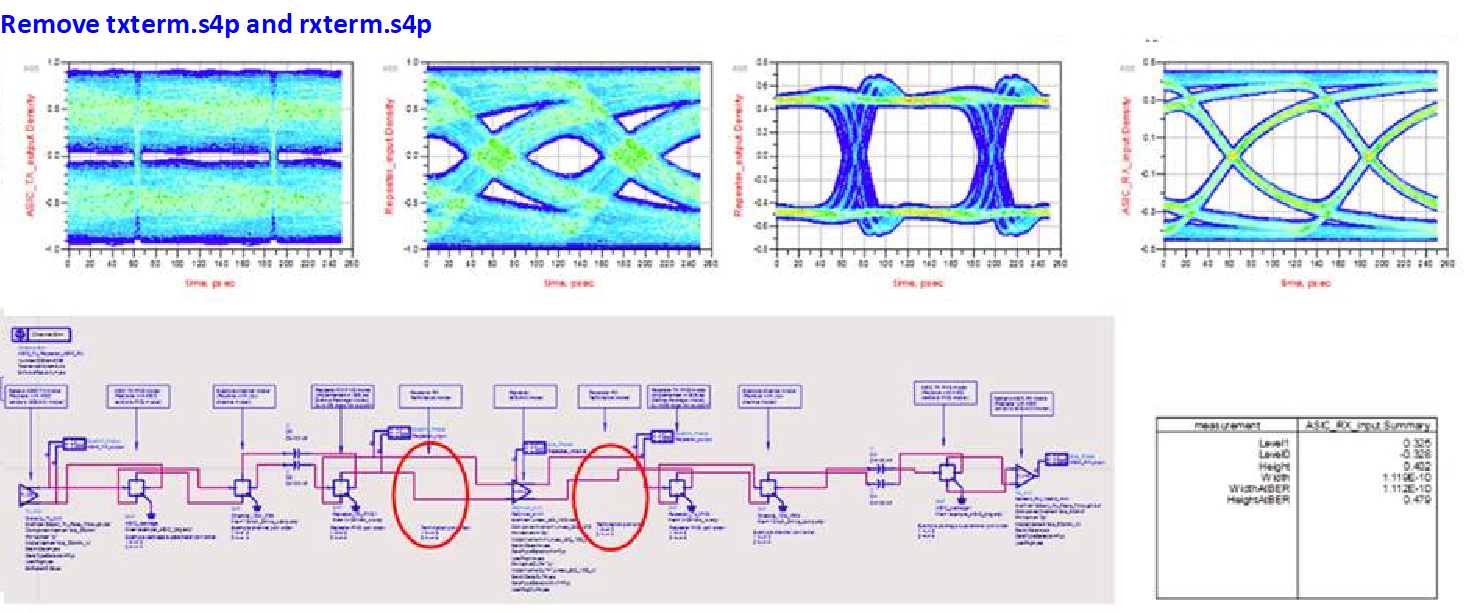

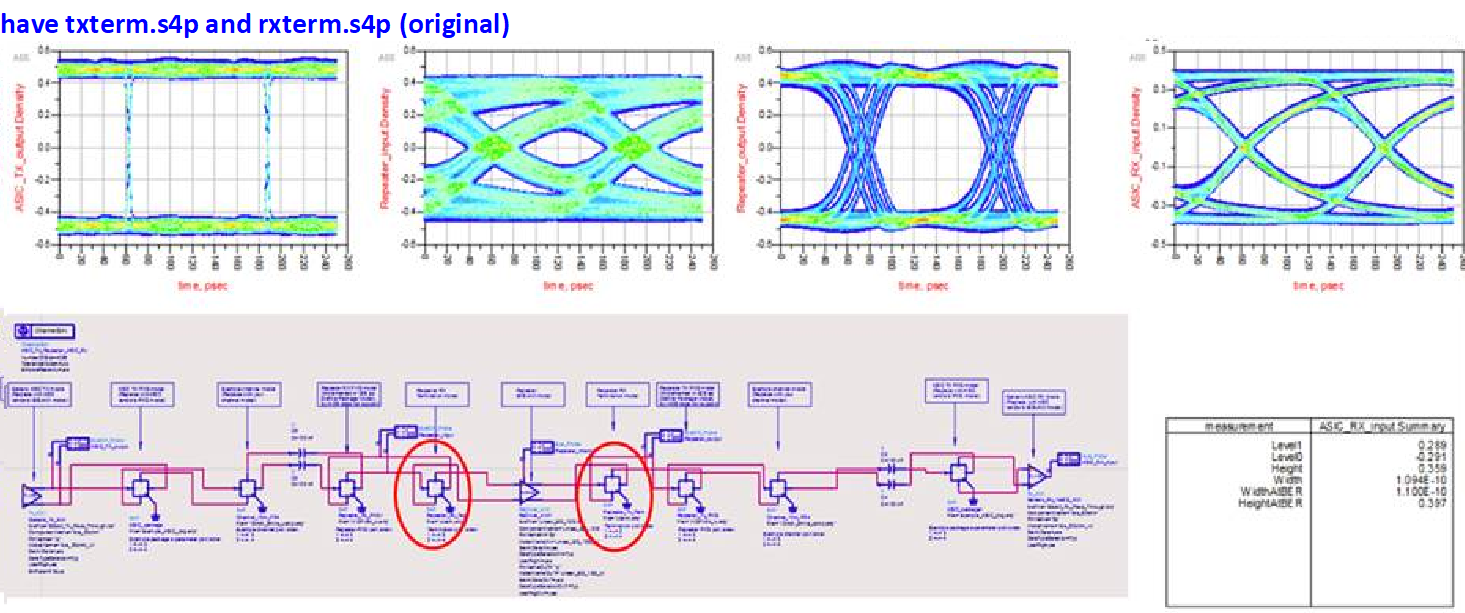

    The termination models are included to represent the termination resistance found in the Rx and Tx circuits.  Without the termination impedance, the reflections from the input only are much larger.  Without the termination attached the receiver is a high impedance circuit.

    Regards,

    Lee
