TMDS181: About "ESD diode" between VCC and IN_Dxp/n and IN_CLKp/N

Hi Moises-san,



Thank you for your prompt reply.

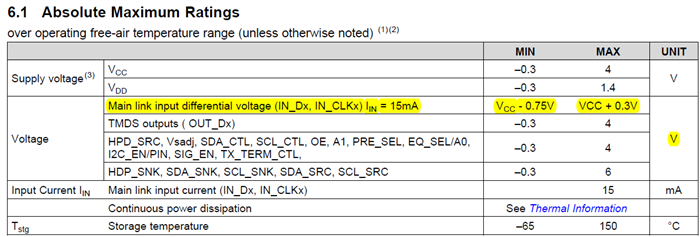

I understand that this protection circuit is the following image.



Regards,

Kanemaru

Hi Kanemaru,

We can't disclose the actual implementation of the circuit.
From HDMI specification there is a 50 ohms resistor from IN_Dx to Vcc.

Regards

Hi Moises-san,

Thank you for your prompt reply.

I understand. Thank you very much.

Regards,

Kanemaru

Hi Moises-san,



I have one more question.

Our customer are evaluating TMDS181 but the source side output “IN_Dxp/n and IN_CLKp/N (around 2.5V)” even if the sink side application including "TMDS181" is power OFF(VCC=VDD=floating).

So, " IN_Dxp/n and IN_CLKp/N " exceeds "VCC+0.3V".

Then, application circuit is like a Figure36.

Have you seen this problem?

If yes, could you please let us know if you have any workaround?



We understand that the cause of this problem is the source device side.

However, could you please let us know if you have any information?



Regards,

Kanemaru

HI Kanemaru,

The HDMI outputs are current sources, they shouldn't apply a voltage on TMDS181 inputs they should sink current.
I'll contact you by email to escalate your questions.

Regards
