RTOS/DS90UB948-Q1: DS90UB948-Q1 and DS90UB949-Q1 setting issue

Hugo Wang

Expert 1525 points

Part Number: DS90UB948-Q1

Tool/software: TI-RTOS

Hi Sirs

We require LVDS panel pixel clock is 65MHz.

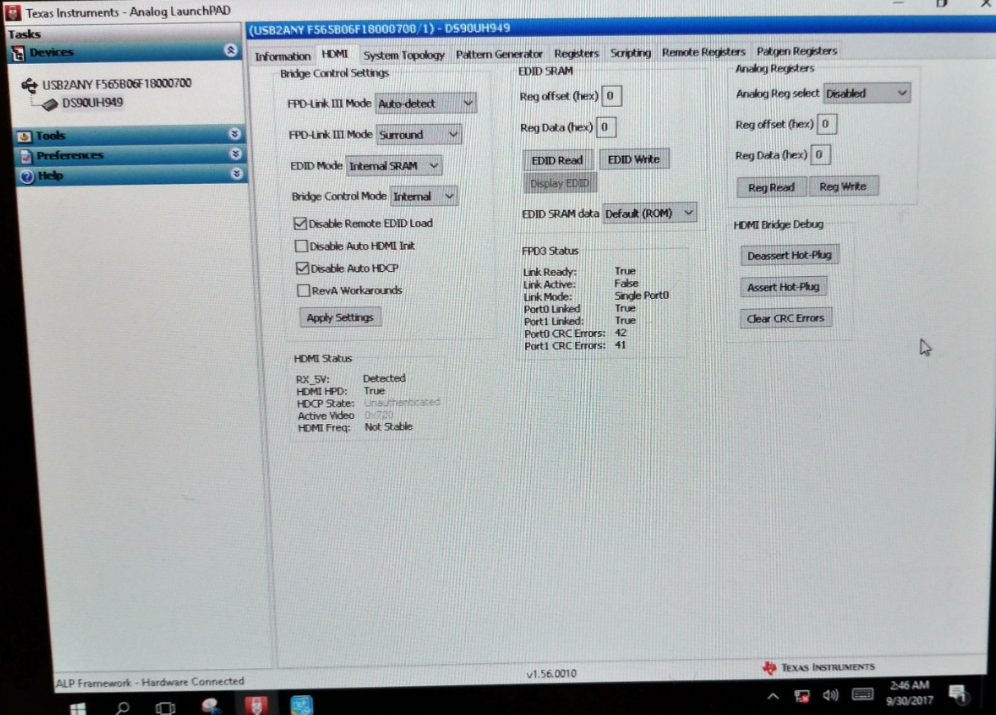

But we only see output is 37.5MHz as below. How to set or modify it to meet 65MHz?

Thank you for your great support.

over 7 years ago

0 Palaniappan Manickam over 7 years ago

TI__Genius 10475 points

Hello, this thread has been assigned for review.

0 Karlchang over 7 years ago in reply to Palaniappan Manickam

TI__Prodigy 170 points

Do you have any update? Thanks.

0 Steven(Shenzhen) Shi over 7 years ago in reply to Karlchang

TI__Mastermind 30515 points

Hi Karl,
the HDMI display resolution is defined through EDID (page18 in d/s), please make sure that you had connect the UB948 with UB949. In your case, the HDMI freq. is NOT stable, it seems the HDMI source is not correct. thanks.

best regards,
Steven
