Type-C connection timing diagram

David Park

Expert 6740 points

Hi,

Could you let me know timing diagram of Type-C as below at USB2.0?

I can't find it at USB org.

Thanks.

over 8 years ago

0 Aramis P. Alvarez over 8 years ago

TI__Genius 10370 points

Hi David,

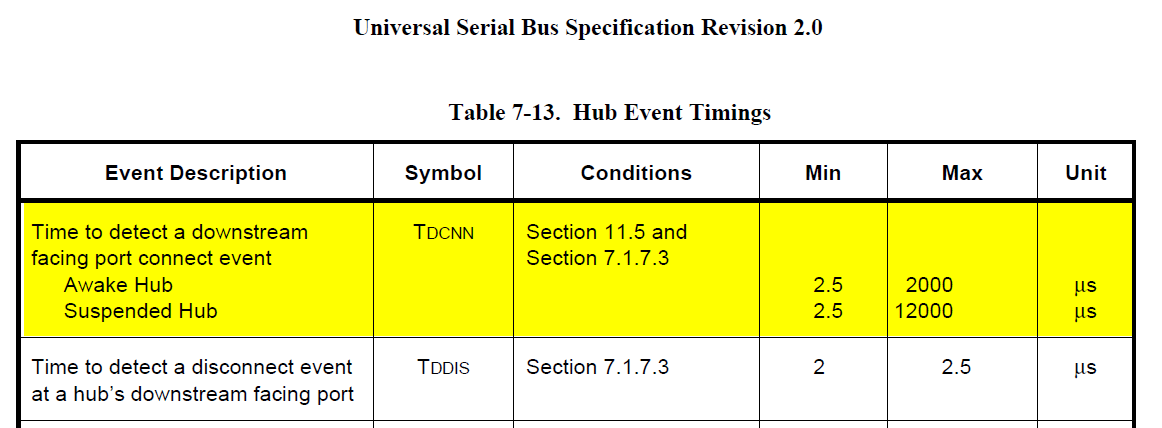

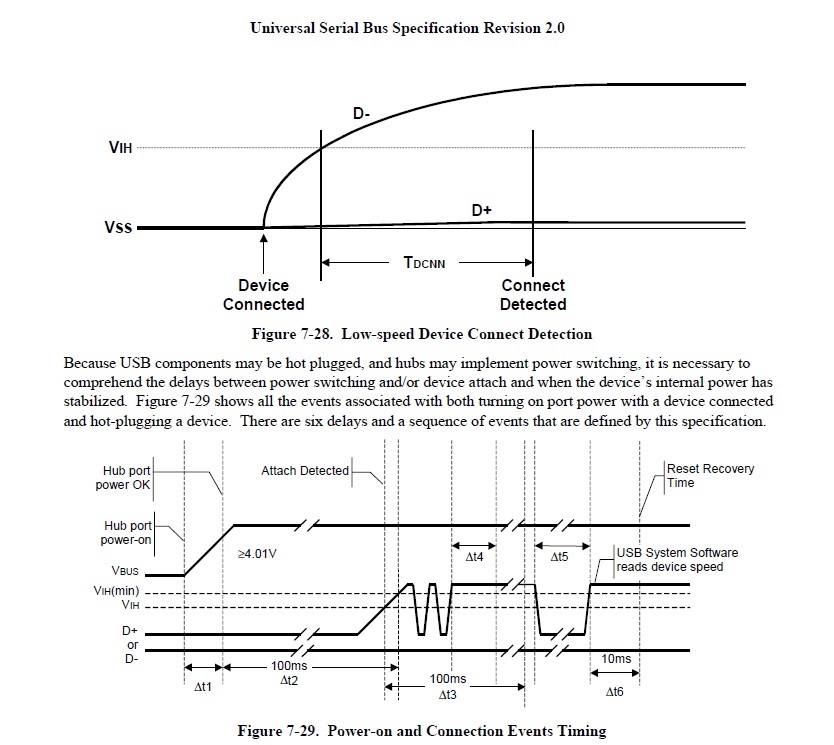

In the same usb 2.0 document, table 7-13 has the min and max event timings (page 214 of 650). Look below for a screenshot of Tdcnn (connect) and Tddis (disconnect) values. I hope this helps :-)

0 Yu-Ning Lee over 8 years ago

TI__Intellectual 1990 points

All Type-C related state diagrams and timing parameters can be found in the USB Type-C specification which can be obtained from USB.org as part of the USB3.2 spec download : www.usb.org/.../usb_32_100617.zip
