DP83867IR: How to check crossed pin number of cable

Daniel Lee68

Part Number: DP83867IR

I would like to know how to check crossed pin number of UTP Cable and don't understand operation theory of below contents that is described in datasheet.

[The DP83867 can record up to five reflections within the tested pair. If more than 5 reflections are recorded, the DP83867 saves the first 5 of them. If a cross fault is detected, the TDR saves the first location of the cross fault and up to 4 reflections in the tested channel.]

Please let me have detail explain or documents of the cross fault.

over 7 years ago

0 Geet Modi over 7 years ago

TI__Mastermind 26320 points

Hi Daniel,

Please use the DP83822 TDR application note to understand how to use the register fields to measure the cross fault distance.
www.ti.com/.../snla253.pdf

Regards,
Geet

0 Daniel Lee68 over 7 years ago in reply to Geet Modi

Prodigy 90 points

Hi Quote,

thanks for your reply.

I had read the application note of the DP83822 for TDR function.

When the channels are crossed as below, How to check the pin 1 of PHY line is connectecd to the pin 3 of partner?

Is the A channel TD+(TX PIN1), TD- (RX PIN2) or TD+(TX PIN1), RD+(RX PIN3) in PHY side?

0 Geet Modi over 7 years ago in reply to Daniel Lee68

TI__Mastermind 26320 points

Hi,

TDR General Status (TDR_GEN_STATUS), Address 0x01A4 has fields to indicate channel on which cross detected.

Regards,
Geet

0 Daniel Lee68 over 7 years ago in reply to Geet Modi

Prodigy 90 points

Hi, Quote.

Thanks for your reply.

After the cross of channels is detected, I want know the crossed pin number of between DP83867 and Partner.

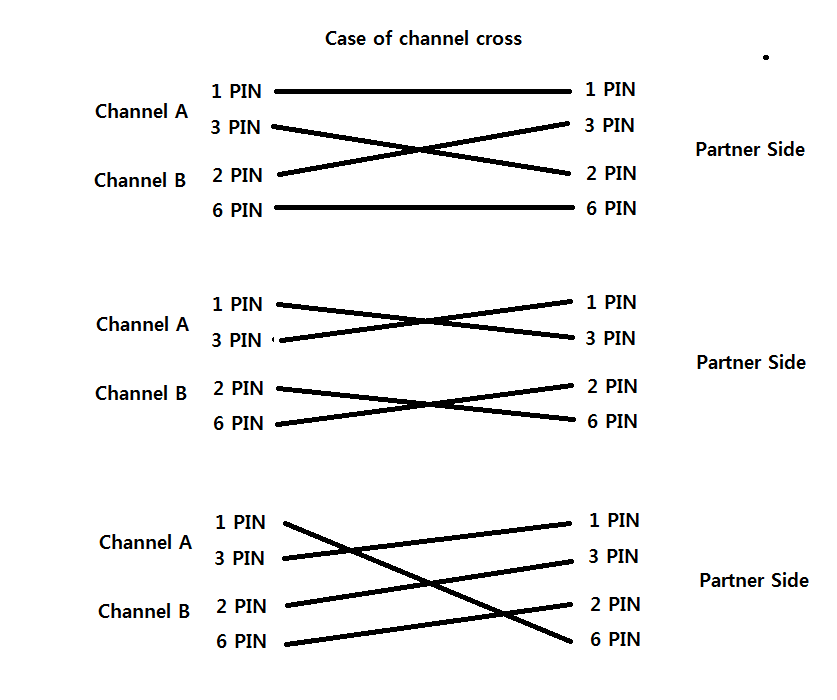

The channel cross is several case as below. I don't know the cross case by use the address 0x01A4.

please help me how to indicate the cross case.
