XIO2001: can't connect with PC, BIOS or EEPROM issue?

Zou Allen

Part Number: XIO2001

We are using XIO2001 to do a bridge card, about the XIO2001 part, we copy your EVM schematic, but when connect with PC, it can't be recognized.

we don't do the BIOS setting and also we don't mount the EEPROM.

Can you help give us some suggestion?

Thank you for you help.

XIO2001.pdf EEPROM.pdf

over 7 years ago

0 Roberto Diaz over 7 years ago

TI__Genius 11255 points

Hello Zou,

Could you please provide us your schematic and layout files so we can take a look on them?

Ara you using a Skylake system?

Regards,
Roberto

0 Zou Allen over 7 years ago in reply to Roberto Diaz

Prodigy 40 points

Hi Roberto,

Thanks for your support.

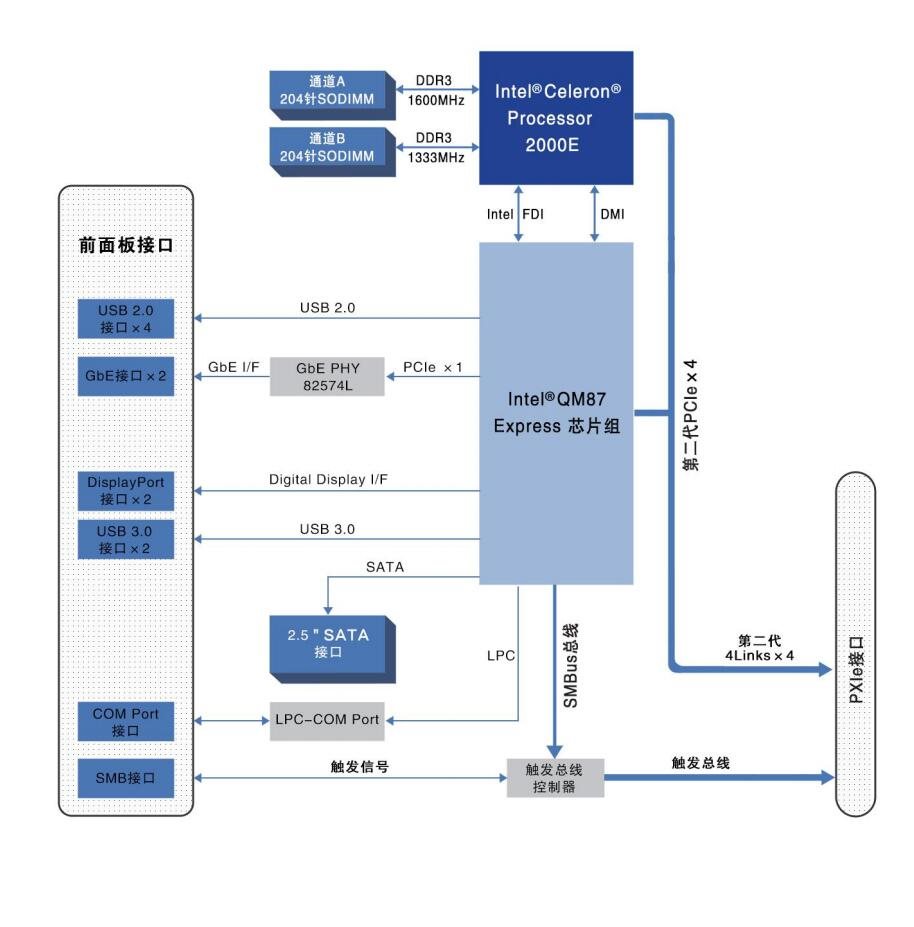

We use XIO2001 bridge card connect the main board, the chipset is QM87, also in this system. you can refer the attached file, the system block.

I save the schematic as PDF, but it seems not very easy to check , the XIO2001 is U7 in Page 8.

I will give you the real layout file later.

pxieclk.pdf

Allen Zou

0 Zou Allen over 7 years ago in reply to Zou Allen

Prodigy 40 points

Hi Roberto,

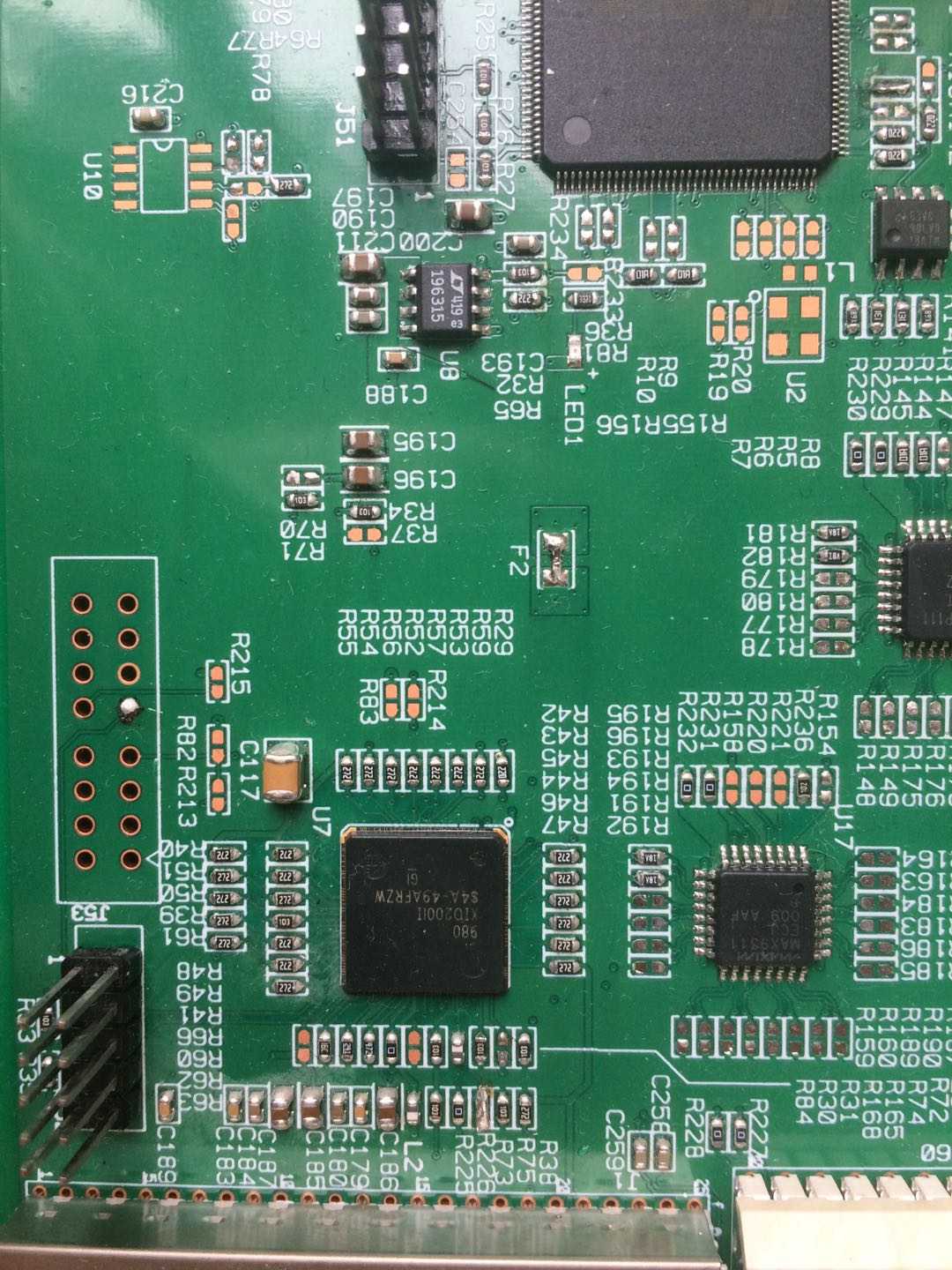

I upload the PCB file, you can open the PCB folder and check the file pcb.pcb

the CAD software we use is Mentor Graphics PCB VIEWER.

Allen Zou2017-10-23 11.14.22 - auto.zip

0 Roberto Diaz over 7 years ago in reply to Zou Allen

TI__Genius 11255 points

Hi Allen,

Thanks for the update, we'll take a look at your design files.

Regards,
Roberto

0 Zou Allen over 7 years ago in reply to Roberto Diaz

Prodigy 40 points

Hi Roberto,

Thanks for your support. Please help debug this issue...we want to mass product this month....

Allen Zou
