DS90C387A: abnormal display on LCD panel

Jinseong Kim
Prodigy 30 points

Part Number: DS90C387A

Hi,

My board use the DSP0C387A. LCD panel is AUO's G240HW01.

Input signal is 1280x720 RGB24.

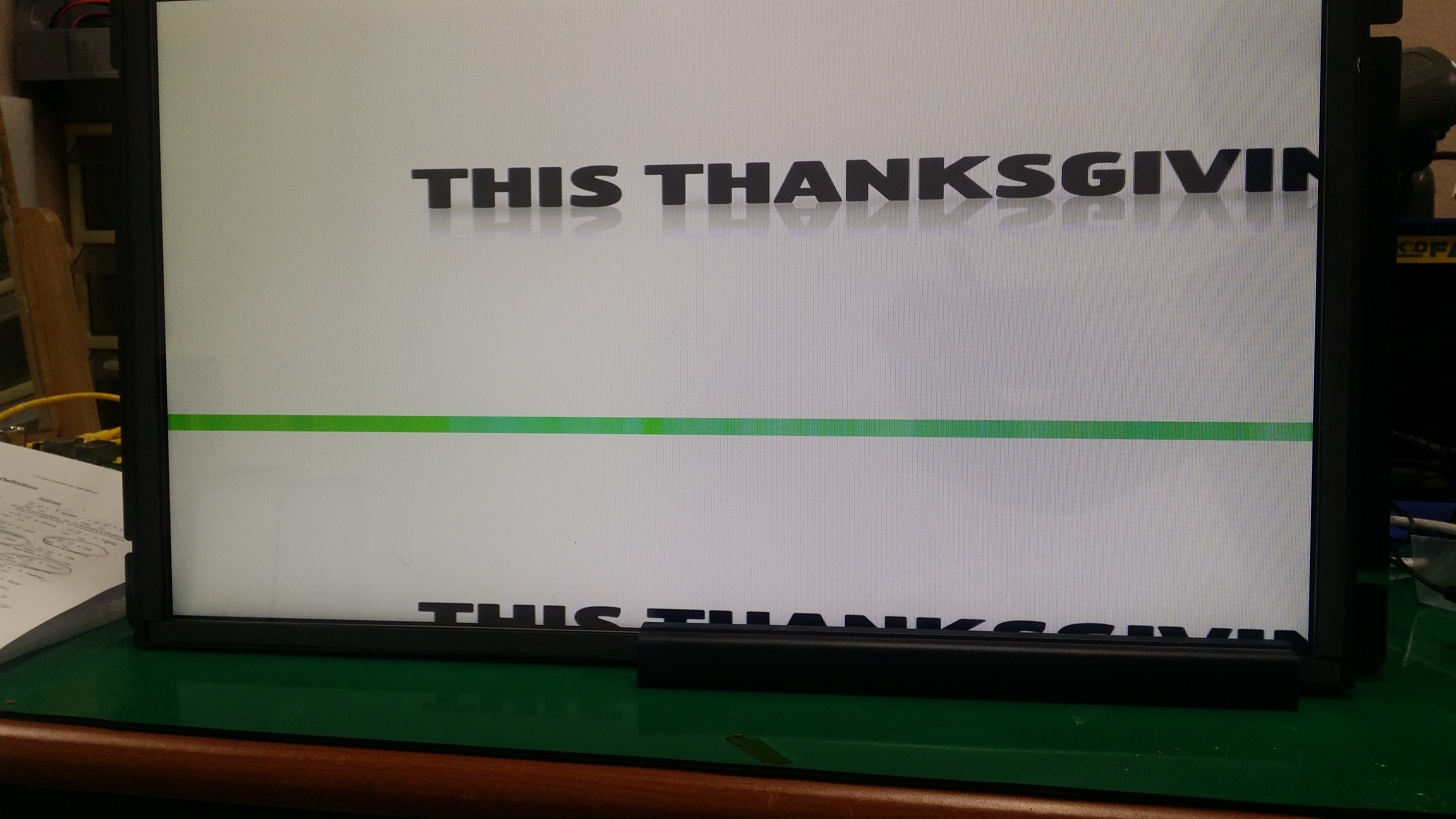

Screen display is as follows.

Please help me.

Thanks.

Jinseong Kim.G240HW01 V0_ver1.0_20120201_적용.pdf

  • 0
    TI__Intellectual 1635 points
    Hi Jinseong,

    In order to help debug your issue, I need some additional information. Are you able to share a schematic of your circuit that uses the DS90C387A and the interface to the display? What CLK rate are you using? Are the colors displaying correctly, and the issue is the offset of the image?

    Regards,
    Ryan
