TPS25810: TPS25810+HD3SS6126 schematic review

Shu-Cheng LIN

Guru 11785 points

Part Number: TPS25810
Other Parts Discussed in Thread: TPS2549, TPS2546

Hi Sirs,

We need use Type A to Type C port.

We don't need support USB3.0/ DP signal and PD function.

Only need USB2.0 signal.

The schematic as below, could you help double confirm again?

1.pdf

Any suggestion is welcome. Thanks!!

over 7 years ago

0 Yongqiang Sun over 7 years ago

TI__Intellectual 2685 points

Hi,
The TPS25810 schematic seems fine, but I have one question
you said you need USB2.0 signal, do you need CDP or SDP?
CDP is Data+1.5A(max) charging current SDP is data+500mA current
if you need CDP, then recommend TPS2546/TPS2549/TPS254900.

0 Shu-Cheng LIN over 7 years ago in reply to Yongqiang Sun

Guru 11785 points

Hi Sirs,

Thanks for your quick reply.

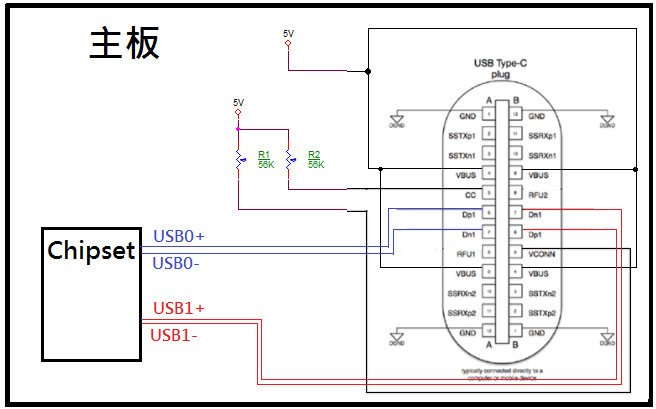

If our end customer applicaiton don't need USB3.0,/PD., and VBus power only support 5V /500mA . When M/B have dual USB2.0 signal, do we need use DFP Controller (TPS25810 ) and USB2.0 Mux/DeMux ?

The function block as below, thanks!!

0 Yongqiang Sun over 7 years ago in reply to Shu-Cheng LIN

TI__Intellectual 2685 points

Hi,

connect two DP1 and DP1 together of TYPE-C connector. connect two DN1 and DN1 together of TYPE-C connector.
then, connect DP to USB+, DM to USB-.
One USB of Chipset is enough.

0 Yongqiang Sun over 7 years ago in reply to Yongqiang Sun

TI__Intellectual 2685 points

if I answered your question, please click "Verify" button so that we can close this E2E question, thank you.

0 Shu-Cheng LIN over 7 years ago in reply to Yongqiang Sun

Guru 11785 points

Hi Yongqiang

OK!! Thanks for your help
