In search of DP 2 lane redriver.

Ananthesh Acharya

Intellectual 535 points

Other Parts Discussed in Thread: SN75DP119, SN75DP130

Hi TI team,

I have requirement from one of the customer for DP 2 lane as Sink/TX.

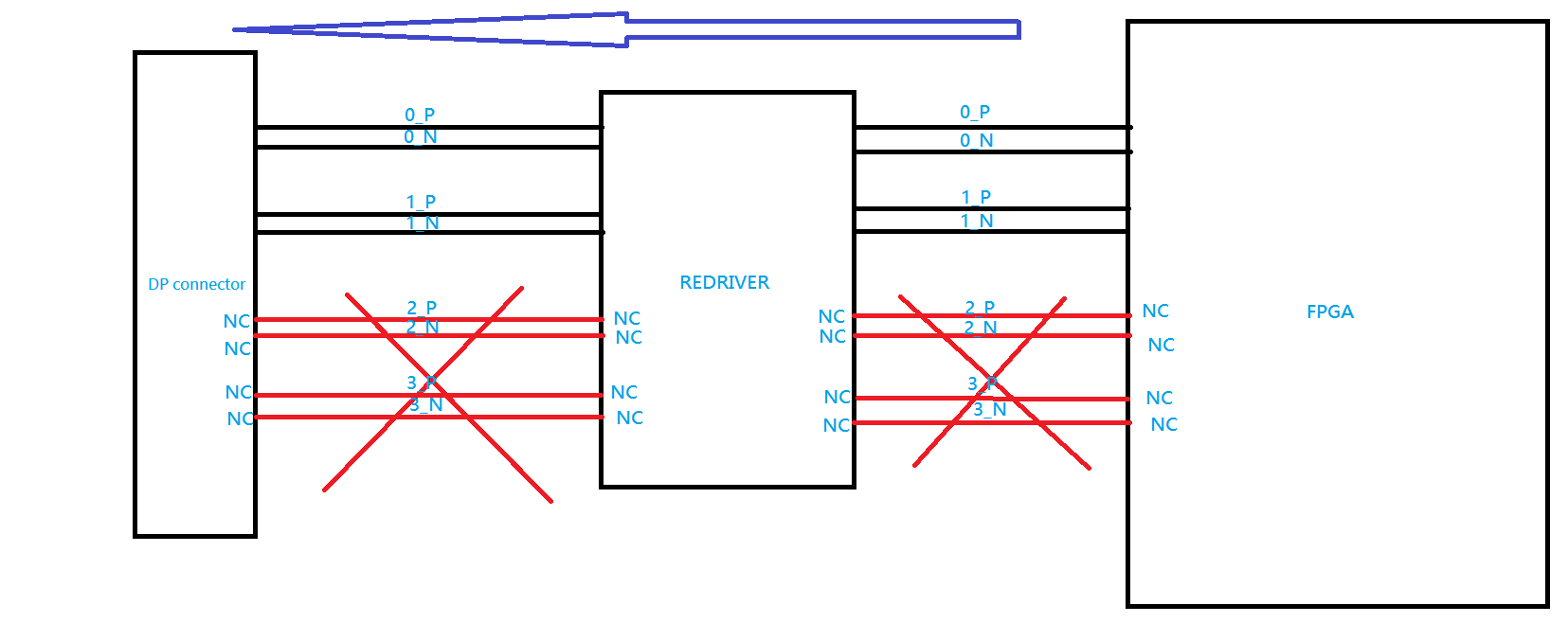

Can you suggest how it can be done. Is dat enough connecting the 2 pairs of lines out of 4 pairs directly to FPGA from the DP connector?
Or should i use any redriver in between? are there any redriver available only for 2 lane DP?

If we connect only 2 lane of DP pins what should do with the rest two lane(should remain kept as NC?).

Waiting for your valuable feedback :) .

Thank you in advance.

With Regards,
Ananthesh

over 7 years ago

0 Diego Cortes over 7 years ago

TI__Mastermind 36085 points

Hi,

You can try with the SN75DP119 (RGY package)

Regards,
Diego.

0 Ananthesh Acharya over 7 years ago in reply to Diego Cortes

Intellectual 535 points

Hi Diego,

Thanks for your quick reply.

I also wanted to know how it can be interfaced between DP connector and Processor.

Is there any reference schematics available for the same.

Thanks & Regards,
Ananthesh

0 Brian Quach over 7 years ago in reply to Diego Cortes

TI__Expert 4325 points

SN75DP130 might be a better choice. SN75DP119 seems targeted at eDP and doesn't support 5.4Gbps.

0 Ananthesh Acharya over 7 years ago in reply to Brian Quach

Intellectual 535 points

Hi,
I am in search of 2 lane DP. Does SN75DP130 supports on 2 lane DP?

0 Ananthesh Acharya over 7 years ago in reply to Ananthesh Acharya

Intellectual 535 points

Hi TI team,

If i use SN75DP130; can i keep the remaining 2 lane as NC.

Or i need to go for other redriver IC supporting only 2 lane DP?

With Regards,
Ananthesh

0 Brian Quach over 7 years ago in reply to Ananthesh Acharya

TI__Expert 4325 points

Hi Ananthesh,

Yes, you can use SN75DP130 and leave the unused lanes floating.

Regards,
Brian

0 Ananthesh Acharya over 7 years ago in reply to Brian Quach

Intellectual 535 points

Hi Brian,

Thanks a lot for providing me the right solution.

With Regards,
Ananthesh
