DS90UB947-Q1: Dual Pixel clock

Kai Hsiao

Guru 12675 points

Part Number: DS90UB947-Q1

HI Sir

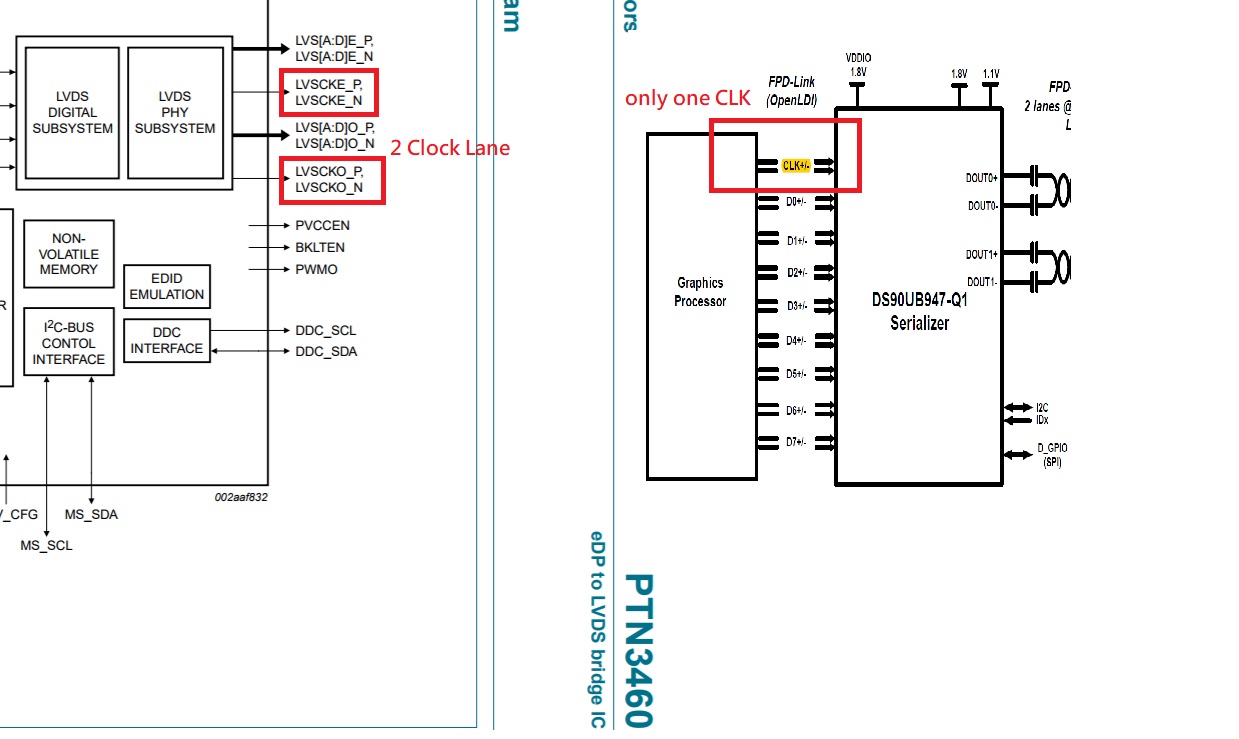

PTN3460 have 2 clock lane output ,but DS90UB947 have only one clock input

In dual pixel ,how could I connect LVSCKO_P/N of PTN3460

over 7 years ago

0 Vijaya Ceekala over 7 years ago

TI__Intellectual 2930 points

947 can operate in Dual-pixel clock mode only if both ports operate off the exact same pixel clock frequency and phase. Given that is the case, you can connect any one of the oLDI clocks to 947 ..,since both clock rates need to be same

0 Kai Hsiao over 7 years ago in reply to Vijaya Ceekala

Guru 12675 points

Hi Vijaya

Thanks for your reply

So you mean just need to connect LVSCKE_P/N of PTN3460 with DS90UB947 and LVSCKO_P/N of PTN3460 could be floating in dual Pixel mode ,is it correct ?

0 Vijaya Ceekala over 7 years ago in reply to Kai Hsiao

TI__Intellectual 2930 points

Correct
