[ DS90UB927 & DS90UB928 ] Two Capacitors for CAPL12

Hi,

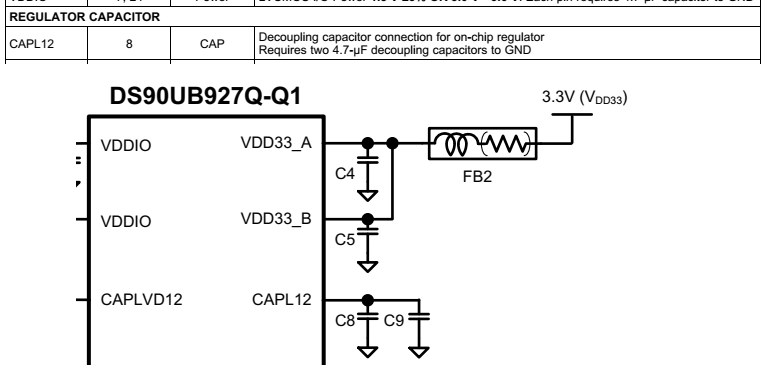

My customer has noticed that their board has only one 4.7uF for CAPL12 pin while datasheet suggest to have two.
Does this cause any of potential failures?

Also, if different values such as smaller or larger caps than 4.7uF are used, what kind of issue can be occurred?

Thank you for your support in advance.
Regards,
Ken

over 7 years ago

0 Charley Cai over 7 years ago

TI__Genius 12866 points

Hi Ken,

The cap are required to suppress potential noise on the voltage line.

It may degrade link performance if they only have one cap there.

Sincerely,

Charley Cai

0 Kenichiro over 7 years ago in reply to Charley Cai

Mastermind 9165 points

Thanks, Charley

For this specific pin "CAPL12", it's required to have two 4.7uF in parallel. Any specific reason?

Thanks,
Ken

0 Charley Cai over 7 years ago in reply to Kenichiro

TI__Genius 12866 points

Hi Ken,
There's no specific reason to have two cap in parallel. It is easier to source 4.7uF cap and put them in parallel.
If they can meet the same capacitance with one cap, it should be ok.

Best,
Charley Cai

0 Kenichiro over 7 years ago in reply to Charley Cai

Mastermind 9165 points

Hi Charley,

Thank you for your supprot, understood.

Regards,
Ken
