TLIN1029-Q1: Transition destination when Vsup > Vsup_under and EN=low in Operation State Diagram

F.N

Part Number: TLIN1029-Q1
Other Parts Discussed in Thread: TPIC1021A-Q1,

Hi team,

As to TPIC1021A-Q1, transition is made from unpowered system state to sleep mode
in the conditions of VSUP > VSUP_UNDER and EN = Low.

But as to TLIN1029-Q1, the transition is made from unpowered system state to standby mode.

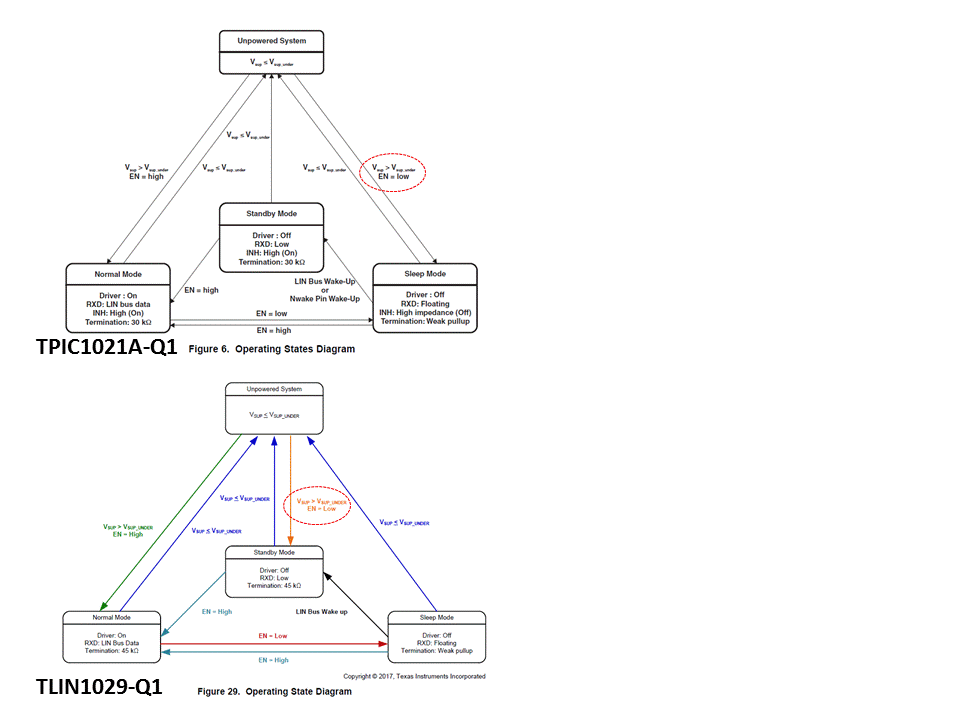

Please see the figures below.

My customer wants to know the reason why the transition destination was changed.
Please let me know.

Best regards,
Fumio Nakano

over 7 years ago

0 Eric Hackett over 7 years ago

TI__Guru 74322 points

Nakano-san,

The switch was partially made to have a defined RXD state on power up instead of floating, and the stronger pull-up termination. This is also consistent with all of our newer LIN devices. In either case, holding EN high on power will put the device directly into Normal mode.

Please let me know if you have any other questions or concerns.

Regards,

0 F.N over 7 years ago in reply to Eric Hackett

TI__Expert 8760 points

Eric -san,

Thank you for your prompt reply.
Your answer was very helpful.
Thank you.

Best Regards,
Fumio Nakano

0 Eric Hackett over 7 years ago in reply to F.N

TI__Guru 74322 points

Nakano-san,

I'm glad I could answer your question. If possible, can you let me know why the customer wanted to know this information?

Regards,

0 F.N over 7 years ago in reply to Eric Hackett

TI__Expert 8760 points

Eric-san,

I think that the customer wants to know whether there was a problem with the status control flow of
TPIC1021A-Q and changed.

Best regards,
Fumio Nakano

0 Eric Hackett over 7 years ago in reply to F.N

TI__Guru 74322 points

Nakano-san,

Understood, thank you for your response, let me know if you have any other questions or concerns, otherwise I will close this thread.

Regards,
