HD3SS3412: S-parameters measurement.

Patrick Chen

Part Number: HD3SS3412

Hello

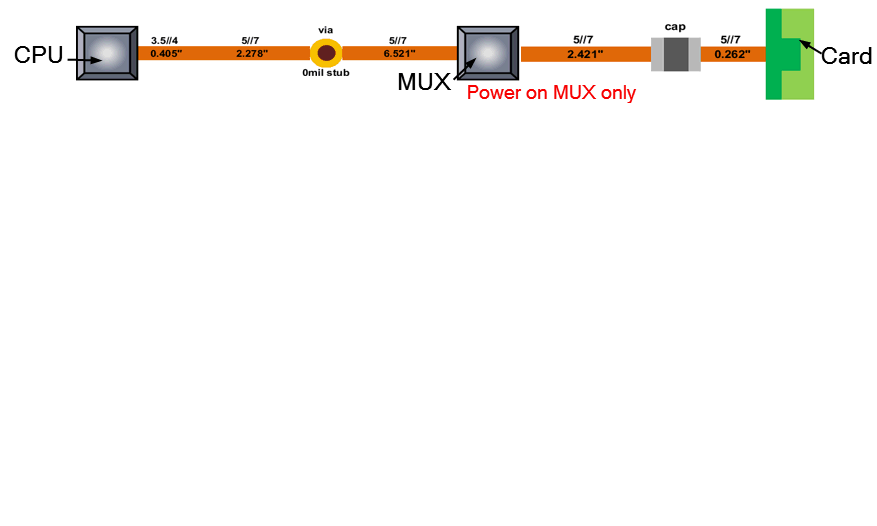

Customer would like to use VNA to measure entire S-parameter of PCIe Channel. Can they just only power on Mux IC and measure interconnection while power off other device of MB ? Thank you.

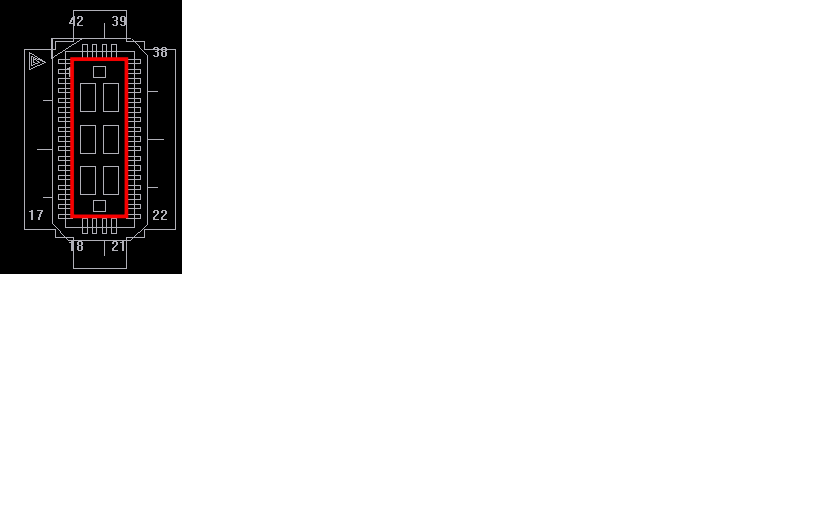

if customer would like use HD3SS3412 to replace PI3PCIE3412AZHEX directly. Can the following thermal pad pattern of stencil apply to HD3SS3412?

Patrick

over 7 years ago

0 Lee Sledjeski over 7 years ago

TI__Mastermind 43795 points

Hi Patrick,

You will definately need to power on the Mux. There are also the CPU and card ends to consider.

Removing the CPU and attaching the VNA to the CPU ball locations will probably work well, but it will require some special probes.

Adding a termination at the card side will improve the overall accuracy of the measurement.

Regards,

Lee

0 Lee Sledjeski over 7 years ago

TI__Mastermind 43795 points

Hi Patrick,

The stencil should work well for either device.

Regards,

Lee
