TPD4S009: TPD4S009DRYR I-V curve

SIDDHARTH MOHAN

Part Number: TPD4S009

Hi ,

can anyone please provide me the reverse transfer curve for the part TPD4S009DRYR. Also what is the typical clamping voltage & current for this part ?

thank you

over 7 years ago

0 Cameron Phillips over 7 years ago

TI__Genius 12410 points

Hello,
I have ordered samples for this part to run the TLP test to give an indication of the clamping voltage.
Also the IV is not super useful since the breakdown voltage and the working voltage are stated in the data sheet and these ESD diodes are not meant for DC applications beyond those values but I will see what I can find.

Regards,
Cameron

0 SIDDHARTH MOHAN over 7 years ago in reply to Cameron Phillips

Genius 3205 points

thanks e can you please also provide me spice model parameters for this part like IS, BV,IBV, RS, N (only these are sufficient)

0 Cameron Phillips over 7 years ago in reply to SIDDHARTH MOHAN

TI__Genius 12410 points

Hello,

I believe we might use different nomenclature when talking about protection diodes. Are you referring to leakage current, breakdown voltage, breakdown current, dynamic resistance?

Regards,

Cameron

0 SIDDHARTH MOHAN over 7 years ago in reply to Cameron Phillips

Genius 3205 points

thanks for the reply ,yes its a bit different but i am asking more in terms of its spice model parameters. Also would be helpful if you can provide the clamping parameters (voltage ..)

0 SIDDHARTH MOHAN over 7 years ago in reply to SIDDHARTH MOHAN

Genius 3205 points

Hi ALL, can anyone also let me know the reverse leakage current of the part. Also will be helpful to know the spice model parameters N, IS , RS

0 SIDDHARTH MOHAN over 7 years ago in reply to SIDDHARTH MOHAN

Genius 3205 points

Hi All, request you feedback please

0 Cameron Phillips over 7 years ago in reply to SIDDHARTH MOHAN

TI__Genius 12410 points

Hello,
I am still working on getting the TLP data I apologize for the delay.
However I do not believe that we will be able to provide the Pspice model that is not standard practice for us because it would just be a regular diode. To characterize transient events we point to the TLP data and we will provide the S-parameter for the signal integrity.

Regards,
Cameron

0 Cameron Phillips over 7 years ago in reply to Cameron Phillips

TI__Genius 12410 points

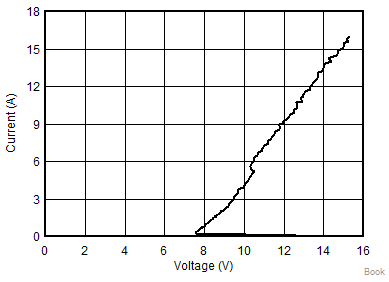

Here is the TLP data of the TPD4S009. This is a typical characteristic.

Regards,

Cameron
