UCC5320: is capacitor needed between VEE2 and GND2

Howard Zou

Part Number: UCC5320

Hi, my customer is using UCC5320E to drive IGBT.

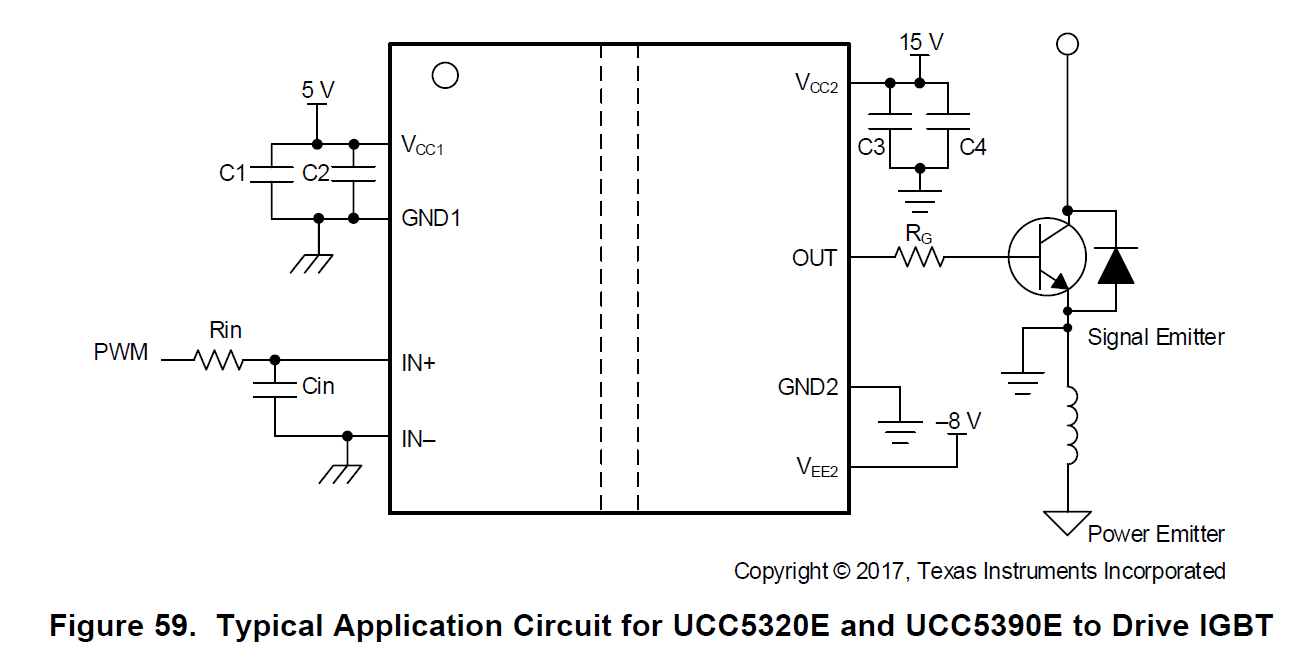

In datasheet, there is no cap between VEE2 and GND2, he wonders if the cap is needed. If it's needed, what's the recommended value?

over 7 years ago

0 Howard Zou over 7 years ago

TI__Genius 12365 points

Besides, will this part have Q100 version?

0 Mateo Begue over 7 years ago in reply to Howard Zou

TI__Intellectual 2805 points

Hello Howard,
For bipolar operation, a capacitor between 220-nF and 10-uF should be selected for device biasing.
The recommended capacitor is a 50-V, 10-uF MLCC and a 0.22-uF MLCC capacitor in parallel.

At this time there is not a Q100 version for this device on the roadmap.

Regards,
Mateo
