DS90UB964-Q1: CML Output Eye Requirement

Kenichiro

Part Number: DS90UB964-Q1
Other Parts Discussed in Thread: DS90UB914A-Q1,

[ DS90UB964-Q1 ] CML Output Eye Requirement

Hi,

My customer has used multiple DS90UB914A-Q1 on board for their production unit. Now they are moving ahead with DS90UB964-Q1 for the future unit.
As it will be a direct replacement from 4 x DS90UB914A-Q1 to DS90UB964-Q1, it's assumed that similar receiver signal integrity should be required.

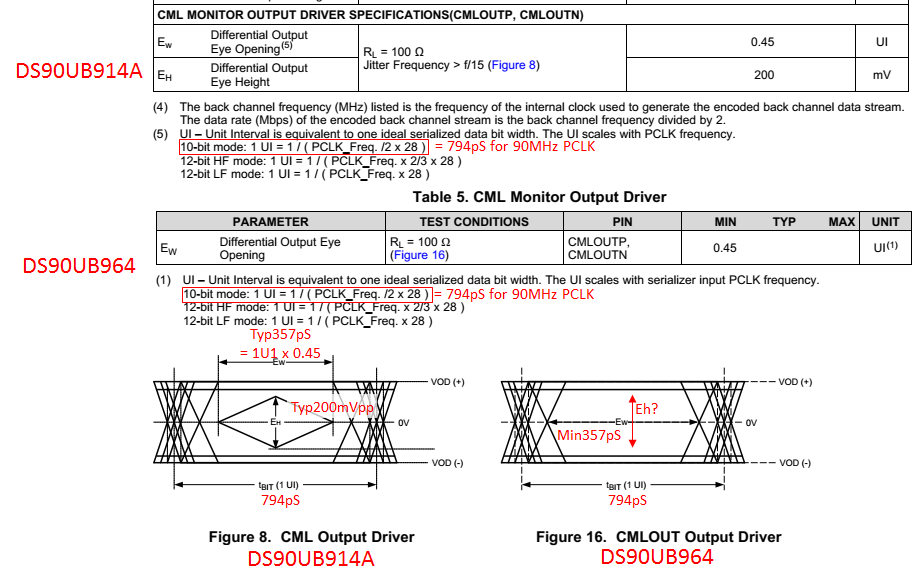

We compare the requirements on CMLOUT signal, few differences, such as typical and minimum difference, no Eh specification.
Can you help to clarify the requirement?

Thanks,
Ken

over 7 years ago

0 Palaniappan Manickam over 7 years ago

TI__Genius 10475 points

Hello,
Keep in mind the CMLOUT is only meant for identifying gross signal conditioning issues during debug and typically not used during normal operation.
And the eye height is not a critical parameter, it is the width since that is indicative of the total jitter in the path.

0 Kenichiro over 7 years ago in reply to Palaniappan Manickam

Mastermind 9165 points

Thanks, Palaniappan. Let me talk with customer.
