DS90UB914A-Q1: DS90UB914A-Q1 & DS90UB913A-Q1 driver code in Linux system

Jerry,
The FPD-Link is a discrete serializer/deserializer so there are no drivers needed. The DS90UB913A/DS90UB914A can work automatically, you can refer to the datasheet for details

Hi Palaniappan,

Thank you very much.
For layout, we hope to use POC and use coaxial line to transmit. . The system needs to useLED, the maximum power is 10W (12V/0.9A), LED is PWM dimming, and the duty ratio is 20%, the frequency is 30-60Hz. Can 10W power be transmitted by POC? Does it affect FPDLINK's video signal transmission?

Jerry

Hi, Jerry,
It is NOT recommended to deliver 0.9A power through high speed cable. Now you can't find the 100uH inductor with 1.8A (50% derating design) rating current spec. in generally, <=0.3A current through cable is available.

best regards,
Steven

Hi Steven,

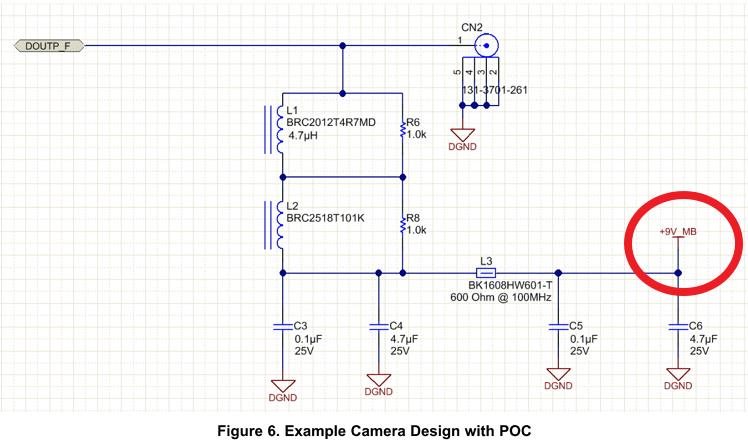

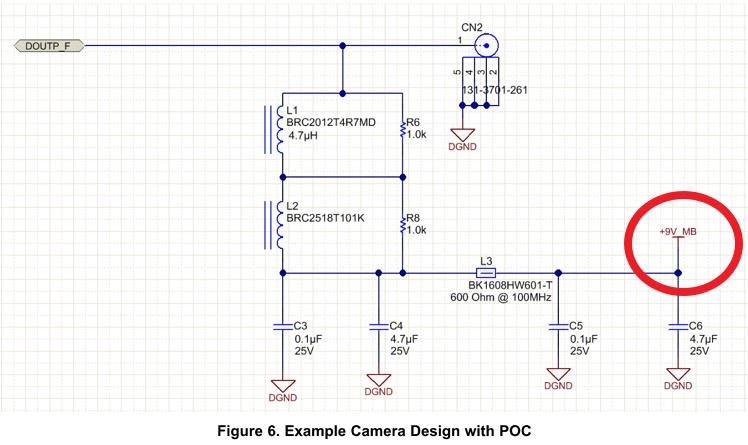

If we add below filter circuit, can we transmit 0.9A?

What are the parameters for L1, L2 , L3 in this case?

Thank you

Jerry

Jerry,
NOT! the current limitation is from the inductor L2, which has ~0.5A rating current spec.

best regards,
Steven

in the industry, the maximum rating current spec. of 100uH inductor is ~0.5A.

best regards,
Steven
