PCI2050B: How much is consumption current?

Masanori Tachibana

Genius 5350 points

Part Number: PCI2050B

Hello support team,

Could you teach me the consumption current of PCI2050B?
I can't find out it on the datasheet.

Best regards,
M. Tachibana

over 7 years ago

0 Ikechukwu Anyiam over 7 years ago

TI__Mastermind 35130 points

Hi Masanori,

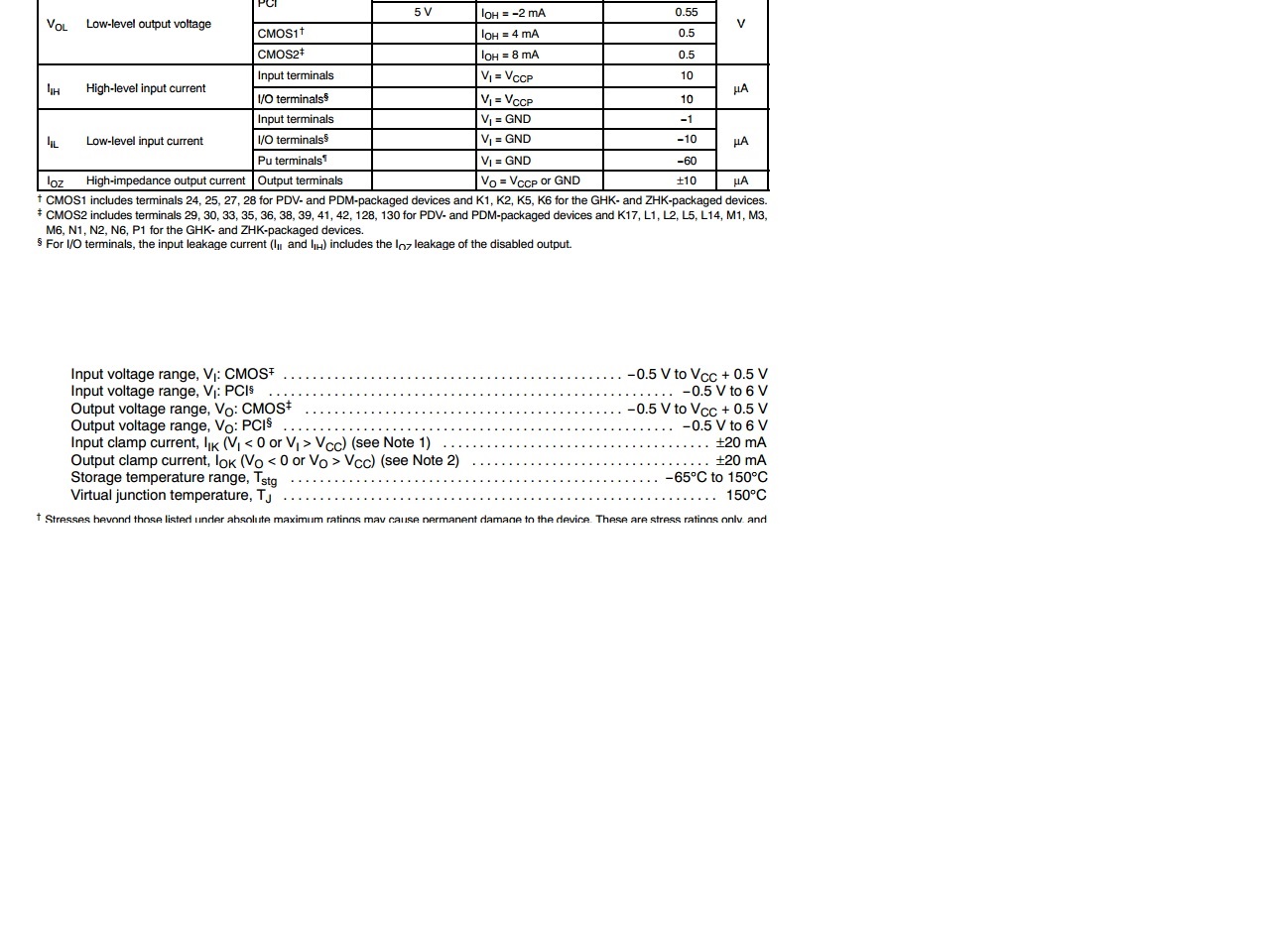

Is the below information about the current from the datasheet not what you're looking for?

Regards,

I.K.

0 Masanori Tachibana over 7 years ago in reply to Ikechukwu Anyiam

Genius 5350 points

Hello Anyiam-san,

What I want to know is not the input current but the power supply current like IDD,
Is there a description on the datasheet?

Best regards,
M. Tachibana

0 Yaser Ibrahim over 7 years ago in reply to Masanori Tachibana

TI__Genius 10250 points

Hello Tachibana-san,

The current consumption depends on the bus speed and the number and type of secondary devices that are connected. Below are the typical total Icc for a few conditions:
For Vcc = 3.3V, P_Vccp = 5.0V, S_Vccp = 5.0V:
Primary Bus: 33 MHz / Secondary Bus: 33 MHz / Power State D0: 40 mA (no load) / 90 mA (two loads on 2nd bus)
Primary Bus: 66 MHz / Secondary Bus: 66 MHz / Power State D0: 88 mA (no load) / 117 mA (two loads on 2nd bus)

For Vcc = 3.3V, P_Vccp = 3.30V, S_Vccp = 5.0V:
Primary Bus: 33 MHz / Secondary Bus: 33 MHz / Power State D0: 68.3 mA (no load)

Regards,
Yaser

0 Masanori Tachibana over 7 years ago in reply to Yaser Ibrahim

Genius 5350 points

Hello Anyiam-san,

Thank you for your information.
These are very helpful for me.

I'll use them as reference.

Best regards,
M. Tachibana
