DP83848K: Question about Eye pattern waveform

Satoshi

Guru 19645 points

Part Number: DP83848K

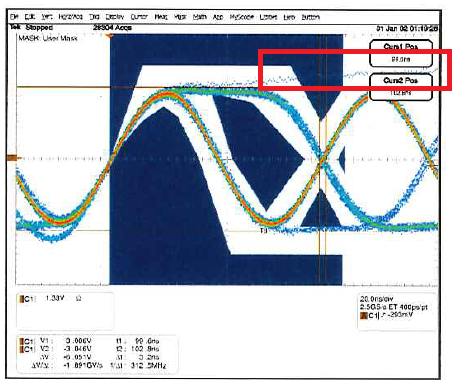

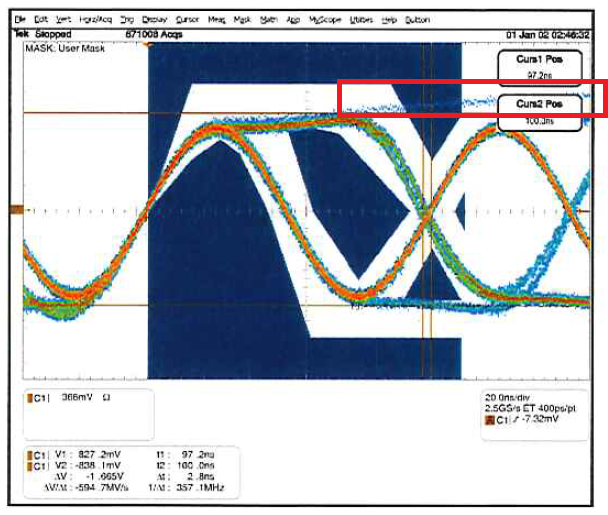

I attached Eye pattern waveform for Tx side of DP83848K.

Please let me know about strange waveform for upper right side. (red area)

Is this waveform no problem for DR83848K operation?

I think that the reason is effect the any configuration action, is it correct?

Best regards,

Satoshi

over 7 years ago

0 Aniruddha Khadye over 7 years ago

TI__Mastermind 18425 points

Hello Satoshi,

Is this waveform generated for compliance testing or is this during normal operation with link partner?

-Regards,
Aniruddha

0 Satoshi over 7 years ago in reply to Aniruddha Khadye

Guru 19645 points

Aniruddha-san

Thank you for reply,
This waveform is normal operation with link partner.

Best regards,
Satoshi

0 Aniruddha Khadye over 7 years ago in reply to Satoshi

TI__Mastermind 18425 points

Hello Satoshi-san,

In case of normal communication with link partner, mask testing is not valid. Usually mask testing is done during compliance testing. This waveform in question might be result of data being send by the DP83848K or link partner. If you are seeing error free data transfer then this should not be a problem.

-Regards,
Aniruddha
