TUSB211: Why the TUSB211 datasheet says the D1P must be short to D2P?

Frank Xiao

Genius 12055 points

Part Number: TUSB211

Hi team,

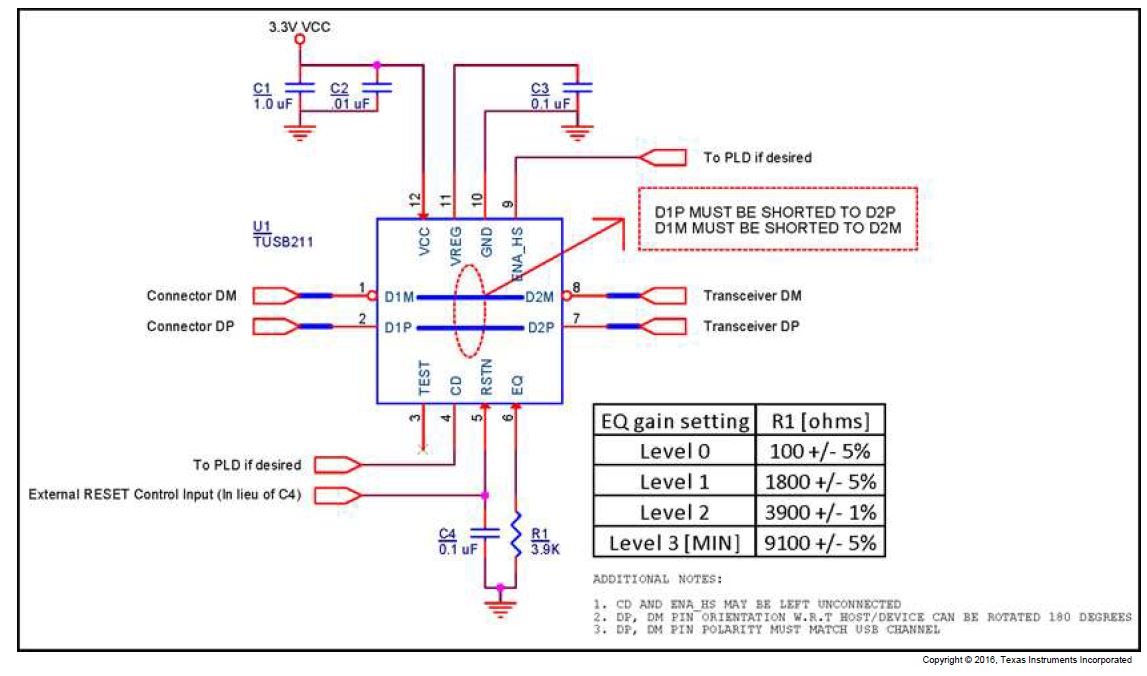

My customer wants to use the device TUSB211. But the datasheet says the D1P must be short to D2P. We want to check why. Thanks.

Frank

over 7 years ago

0 Malik Barton57 over 7 years ago

TI__Guru 64326 points

Frank,

Yes to implement TUSB211 D1M and D1P must be shorted together as well as D2M and D2P.

0 Undrea Fields over 7 years ago in reply to Malik Barton57

TI__Genius 11480 points

To add, the TUSB211 is designed to operate without breaking the USB DP and DM signal traces. This also enables a BOM option for the device without the need for re-layout.
