DS90UB949-Q1EVM: We got wrong information about HDMI state.

Lian Wu

Genius 5250 points

Part Number: DS90UB949-Q1EVM
Other Parts Discussed in Thread: ALP

Dears:

We guess there is something wrong with our EVM, since we got wrong information about HDMI state.

And we got the signal of 5V RX.

Is there any issue about hardware?

Thanks a lot!

Best regards

Luck Wu

over 7 years ago

0 Vijaya Ceekala over 7 years ago

TI__Intellectual 2930 points

Hello
Can you explain further what state you were expecting to see and what resolution you are feeding into the part? I see that 5V_RX is indeed detected

0 Steven(Shenzhen) Shi over 7 years ago

TI__Mastermind 30515 points

Luck,
what is your question? the HDMI status in the ALP is correct.

best regards,
Steven

0 Lian Wu over 7 years ago in reply to Steven(Shenzhen) Shi

Genius 5250 points

Dear Steven:

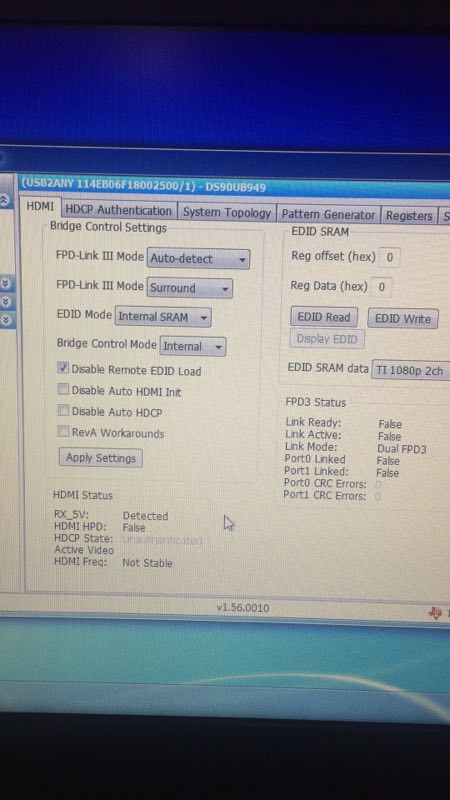

Pls. refer the below picture, and the signal's resolution is 1920*1080.

The HDMI HPD's state is False although RX_5V is detected.

Is there any problem about the Hardware of EVM? Since before the EVM is OK.

Thanks!

Best regards

Luck Wu

0 Steven(Shenzhen) Shi over 7 years ago in reply to Lian Wu

TI__Mastermind 30515 points

Luck,
in your first picture, the HDMI status is correct.
how can you get the last picture? please make sure the UB949 is connected with panel.

best regards,
Steven
