DP83TC811R-Q1: short to battery and GND protection

Dongbao Zhou

Part Number: DP83TC811R-Q1
Other Parts Discussed in Thread: DP83TC811

Hi team,

I'd like to confirm with you that whether dp83tc811r-q1 support short to battery and GND protection on the connector side?

My customer will conduct short to a 14V power supply and GND test, will the AC capacitor protect our device from destroying?

Thanks.

Dongbao

over 5 years ago

0 Aniruddha Khadye over 5 years ago

TI__Mastermind 18425 points

Hello Dongbao,

Do you mean customer plans to connect the PHY pins to 14V? Can you share any more setup information?

-Regards,
Aniruddha

0 Dongbao Zhou over 5 years ago in reply to Aniruddha Khadye

TI__Expert 3930 points

Hi Aniruddha，

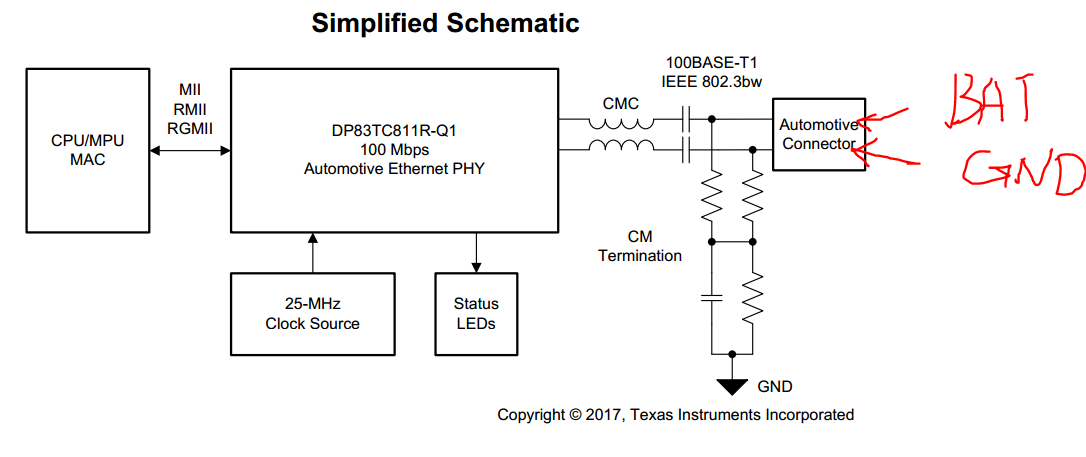

Short to bat protection at the automotive connector side is required, they will short the pins to 14V or gnd? Is that ok for dp83tc811? I think it should be fine since we have ac capacitor, the 14v would not affect the TRD_P/N.

What do you think?

Have you seen this kind of request from other customers? Thanks.

Dongbao

0 Ross Pimentel over 5 years ago in reply to Dongbao Zhou

TI__Mastermind 23675 points

Hi Dongbao,

Yes, the 811 will survive the supply-ground short.

DC blocking caps will isolate the battery and the internal ESD structure will suppress the impulse.
