HD3SS3220: How to improve HD3SS3220 ESD issue

Ronald Wang

Intellectual 390 points

Part Number: HD3SS3220
Other Parts Discussed in Thread: TPD4E02B04

Dear Sir,

My customer test ESD (8kV) fail when using HD3SS3220 externally connected Hard Disk (or SSD).

The reason for the failure is that no hard disk (or SSD) can be detected.

Could you tell me what are the possible causes of failure and improvement measures?

e.x

Customer has used ESD 7528T and ESD 0551P for ESD protection.

Thank you.

Best regards,

Ronald

over 7 years ago

0 Michael.Walker over 7 years ago

TI__Mastermind 19720 points

what kind of ESD test is it? is it contact or air? Where do you apply the ESD test?

0 Ronald Wang over 7 years ago in reply to Michael.Walker

Intellectual 390 points

Hi Michael

Apply ESD 8kV to the iron shell (air).

Product is POS system.

Best regards,

Ronald

0 Ronald Wang over 7 years ago in reply to Ronald Wang

Intellectual 390 points

Hi Michael

Any other suggestions?
Please tell me if you have any question.

Best regards,

Ronald

0 Michael.Walker over 7 years ago in reply to Ronald Wang

TI__Mastermind 19720 points

Hey Ronald,
Sorry for the delay I am trying to get someone from another group at TI involved this does not sound like an issue with the HD3SS3220 but with the ESD parts that you are using. What ESD parts are you using?

0 Ronald Wang over 7 years ago in reply to Michael.Walker

Intellectual 390 points

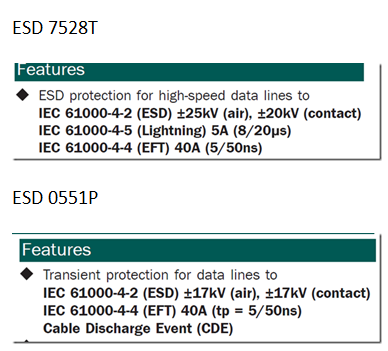

RClamp7528T.pdf RClamp0551P.pdfCustomer has used ESD 7528T and ESD 0551P for ESD protection.

0 Ronald Wang over 7 years ago in reply to Ronald Wang

Intellectual 390 points

Hi Michael

I recommend that customers use TPD4E02B04

Can customer use software to reset HD3SS3220 If customer still have ESD issue ?

Thank you.

Best regards,

Ronald

0 Cameron Phillips over 7 years ago in reply to Ronald Wang

TI__Genius 12410 points

Ronald,

It will usually reset if they are striking just the ground plane which is causing the device to shut off. Does it actually damage or does it just start working when manually reset? Also what pins are they using that ESD protection device on?

Regards,

Cameron

0 Ronald Wang over 7 years ago in reply to Cameron Phillips

Intellectual 390 points

Hi Cameron,
1. Does it actually damage or does it just start working when manually reset?
Components are not damaged during ESD testing but need to be manually reset.
2. Also what pins are they using that ESD protection device on?
CC1,CC2 ,TX2p ,TX2n ,RX2p ,RX2n, TX1p ,TX1n ,RX1p ,RX1n, hvve used ESD protection device on.

Thank you.

Regards,
Ronald

0 Ronald Wang over 7 years ago in reply to Ronald Wang

Intellectual 390 points

Dear Sir,

Do you have any other suggestion ?
Thank you.

Regards,
Ronald
