DS90UB954-Q1EVM: Can't set up slave/camera ID and alias ID

user3518908

Part Number: DS90UB954-Q1EVM
Other Parts Discussed in Thread: DS90UB953-Q1EVM,

Hi,

I am using the DS90UB953-Q1EVM and DS90UB954-Q1EVM . And i run the P954_A0_RX0_CSI_Enable.py script and the ovt_1920_1080_REMOTE.py script to initialize

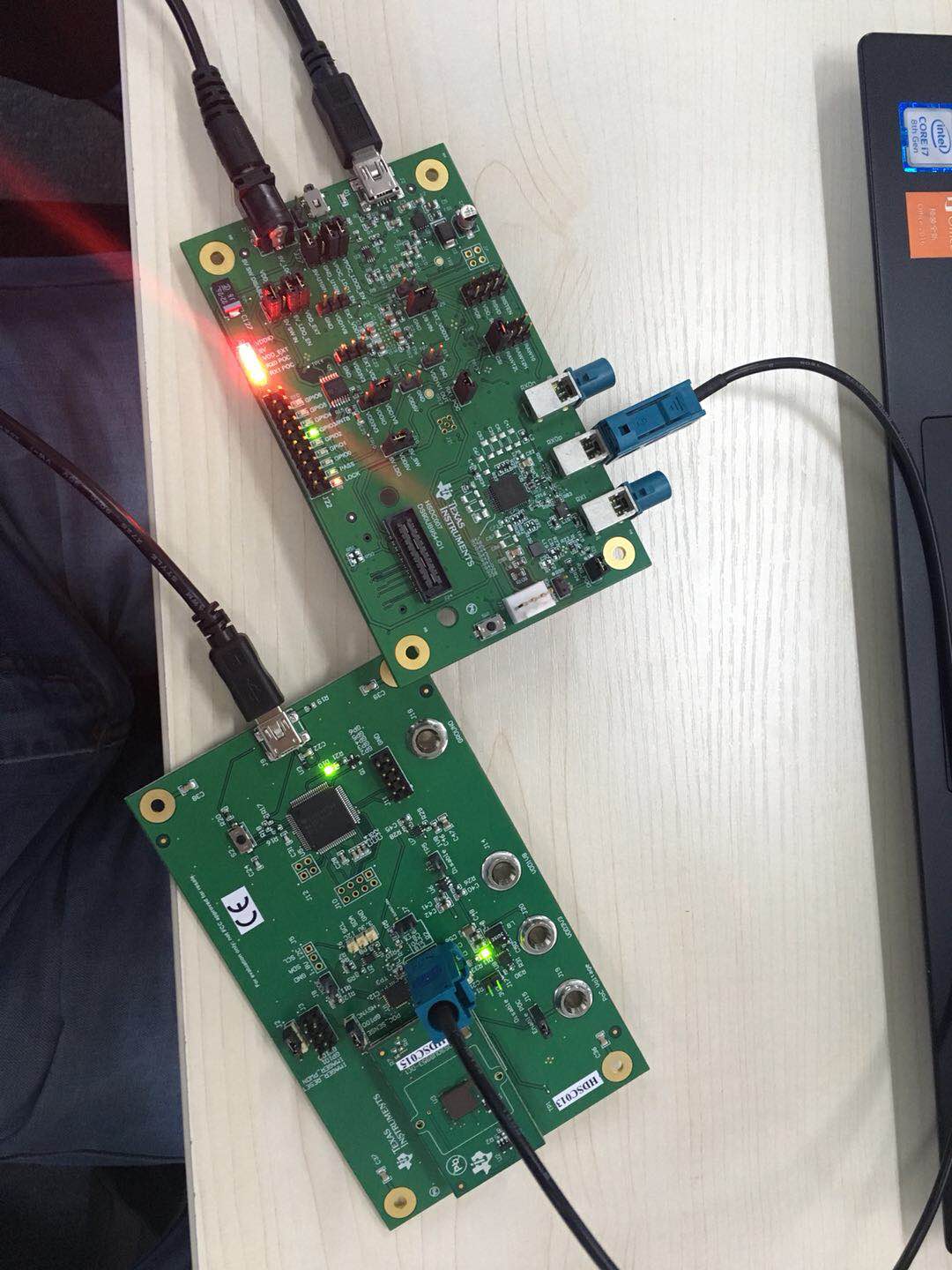

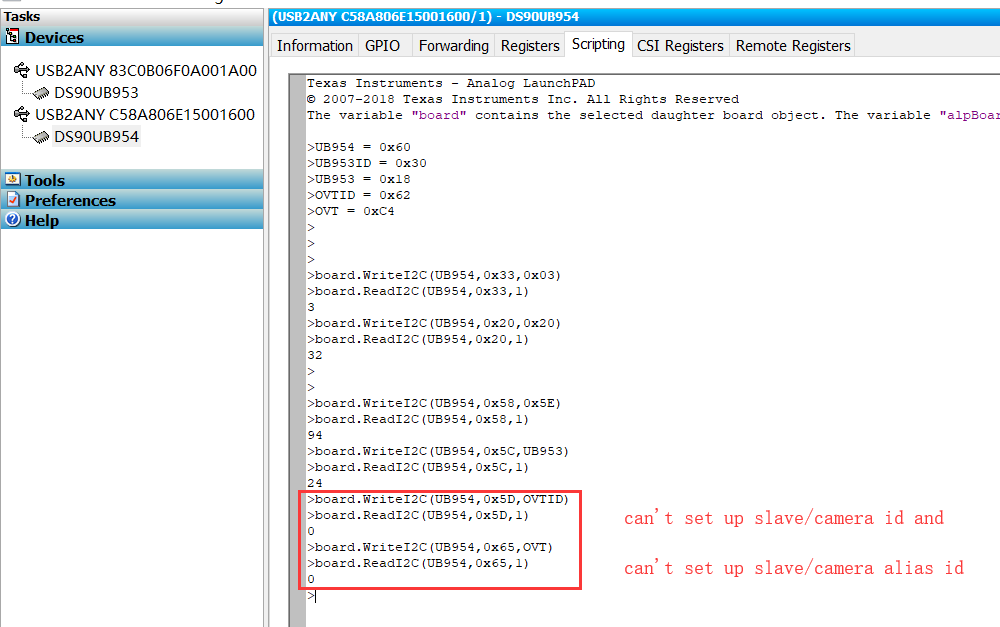

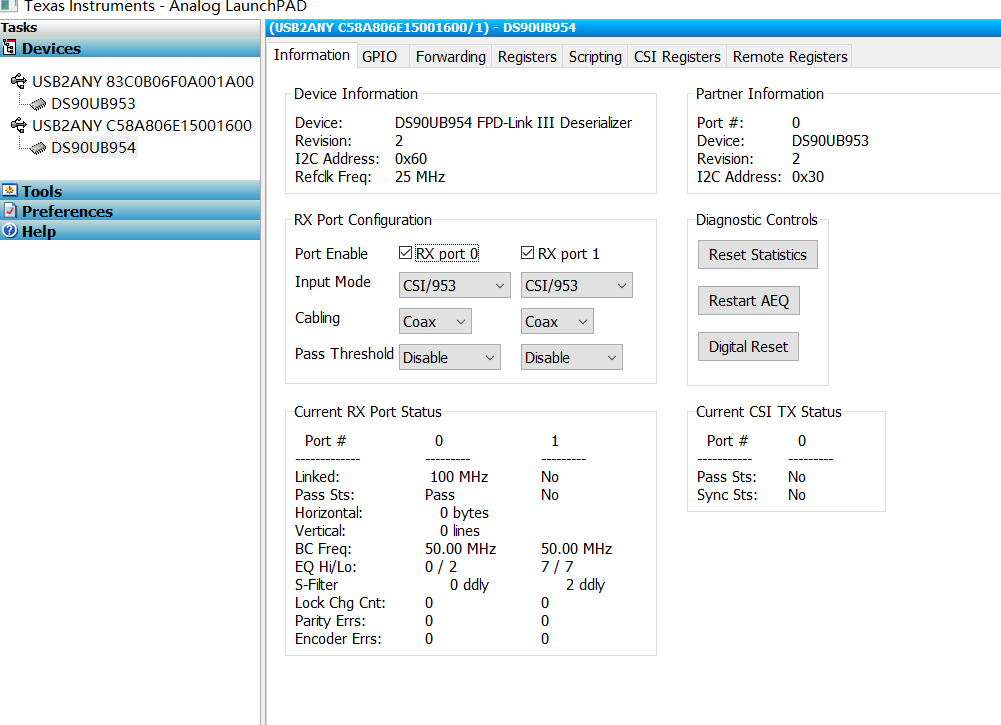

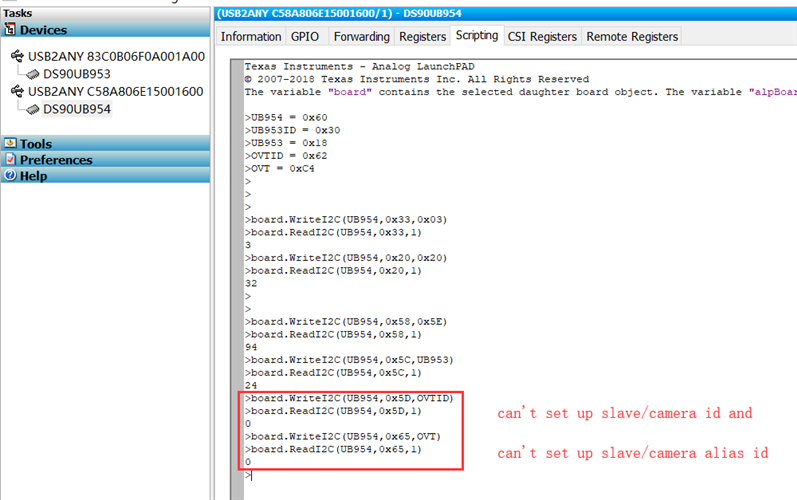

eht EVMs and camera.but i failed. i found slave/camera ID and alias ID are unable to write . Can you help me ?

Thanks.

over 7 years ago

0 Jonathan Nguyen over 7 years ago

TI__Expert 4555 points

Hi,

Please set up Port 0 by writing 0x01 to Register 0x4C, and set the back channel configuration to 50 Mbps by writing to Register 0x58 after declaring the device IDs/addresses.

You should also double check the address for the 954, sometimes it can show up as 0x60 or 0x7A.

Regards,
Jonny

0 user3518908 over 7 years ago in reply to Jonathan Nguyen

Prodigy 60 points

Hi Jonny,

It works. Thanks. But I got another problem. I can't write OVT Registers.

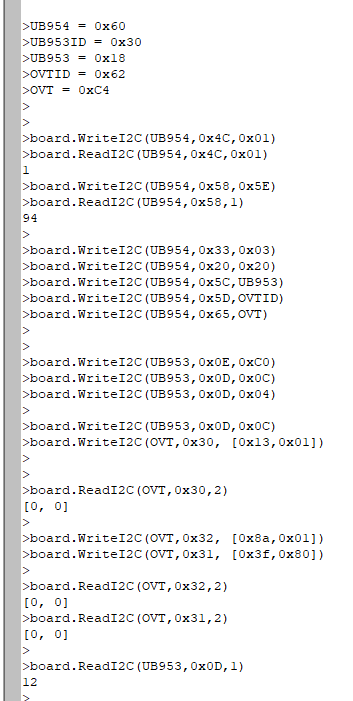

Here is the script.

Thanks again.

0 Jonathan Nguyen over 7 years ago in reply to user3518908

TI__Expert 4555 points

Hi,

You should set up Port 0 and the back channel frequency first. Try moving those two lines of code that you added (Register 0x4C and 0x58) to your first two lines after declaring device IDs and then check to see if you can write to the OVT registers.

Regards,

Jonny

________________________________________________________________________________________________________________________

Training on FPD-Link Serializer Deserializer devices and system: training.ti.com/fpd-link-learning-center

More information on IVI or ADAS FPD-Link products: www.ti.com/.../overview.html

0 user3518908 over 7 years ago in reply to Jonathan Nguyen

Prodigy 60 points

Hi ,

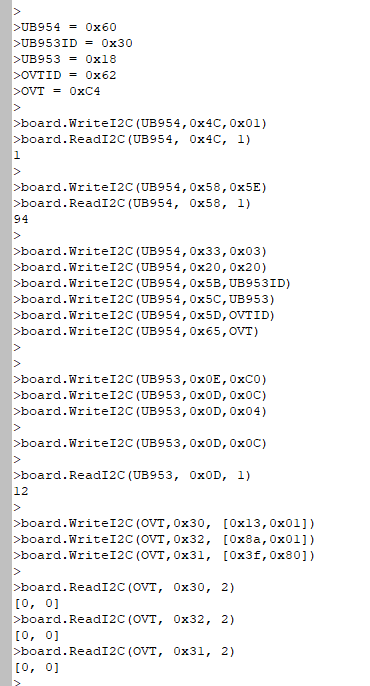

I didn't notice the order before. The OVT register can't be write when I've corrected it.

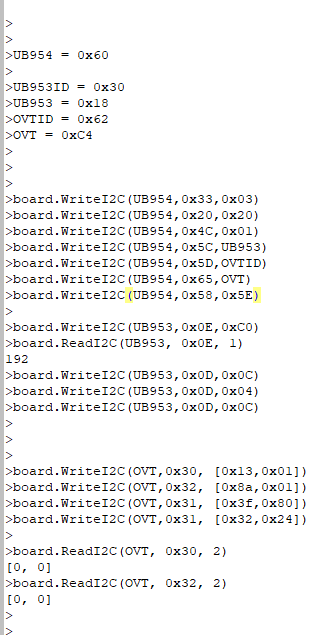

and here is my script
