DS90UB940-Q1: Link DS90UB921,Screen display flashes

Vickers

Intellectual 980 points

Part Number: DS90UB940-Q1

Hello,

949 Link 940 is normal, and 921 Link 940 is like video. The Lock is high. Does 940 still need configuration?

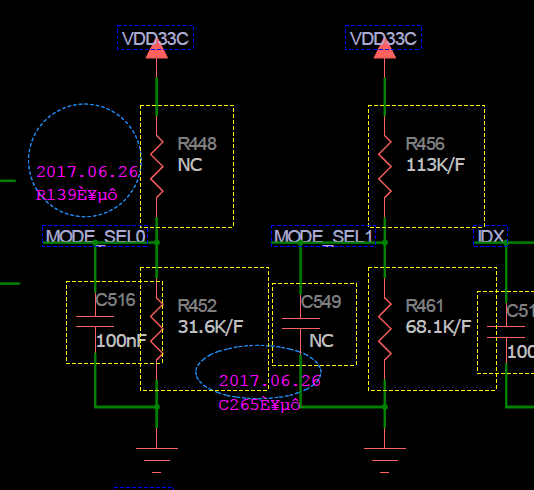

Mode_sel of 940 is as follows:

921

mode_sel pin: #1

FSEL pin: L

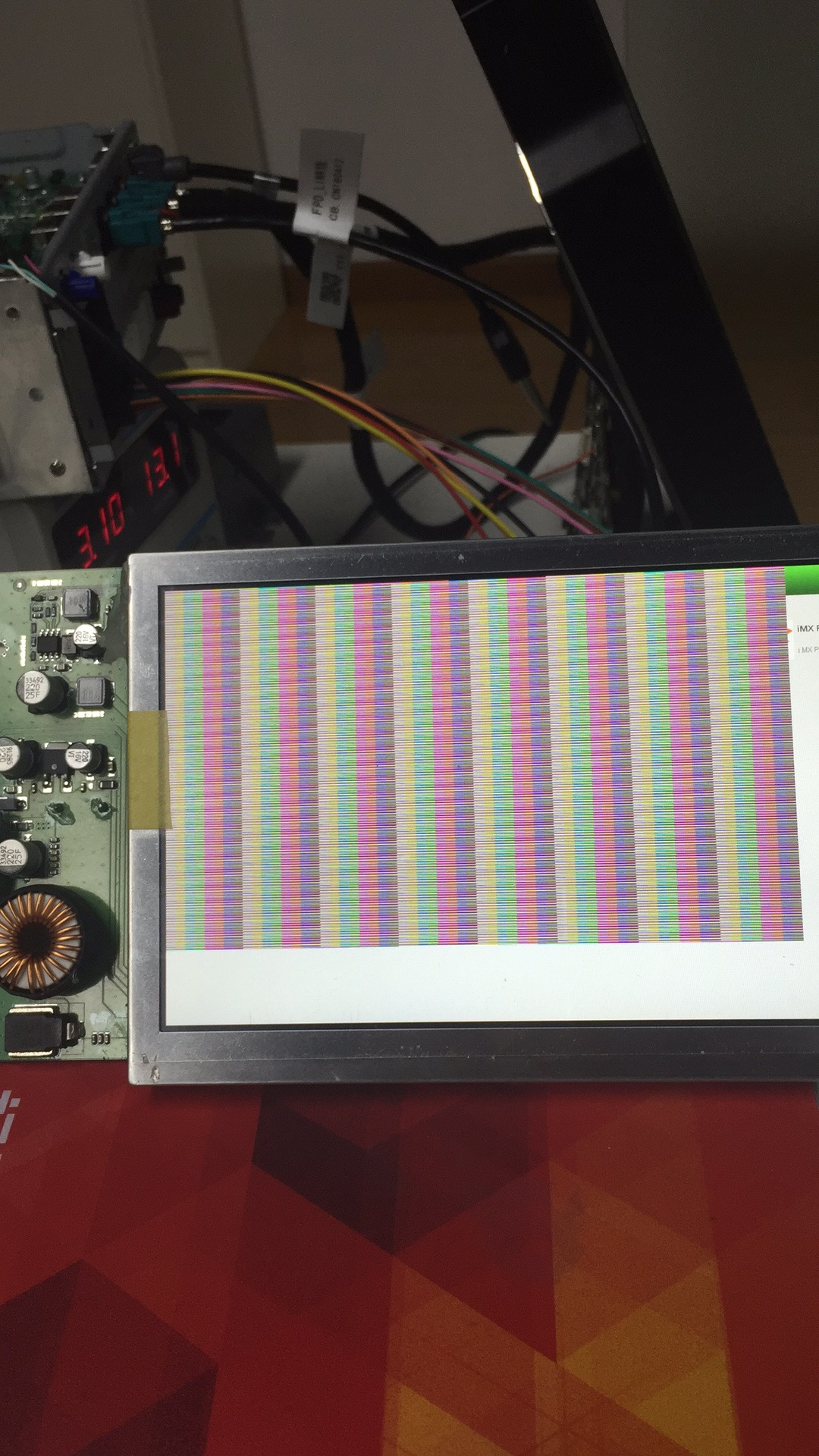

940 test pattern：

over 8 years ago

0 Vickers over 8 years ago

Intellectual 980 points

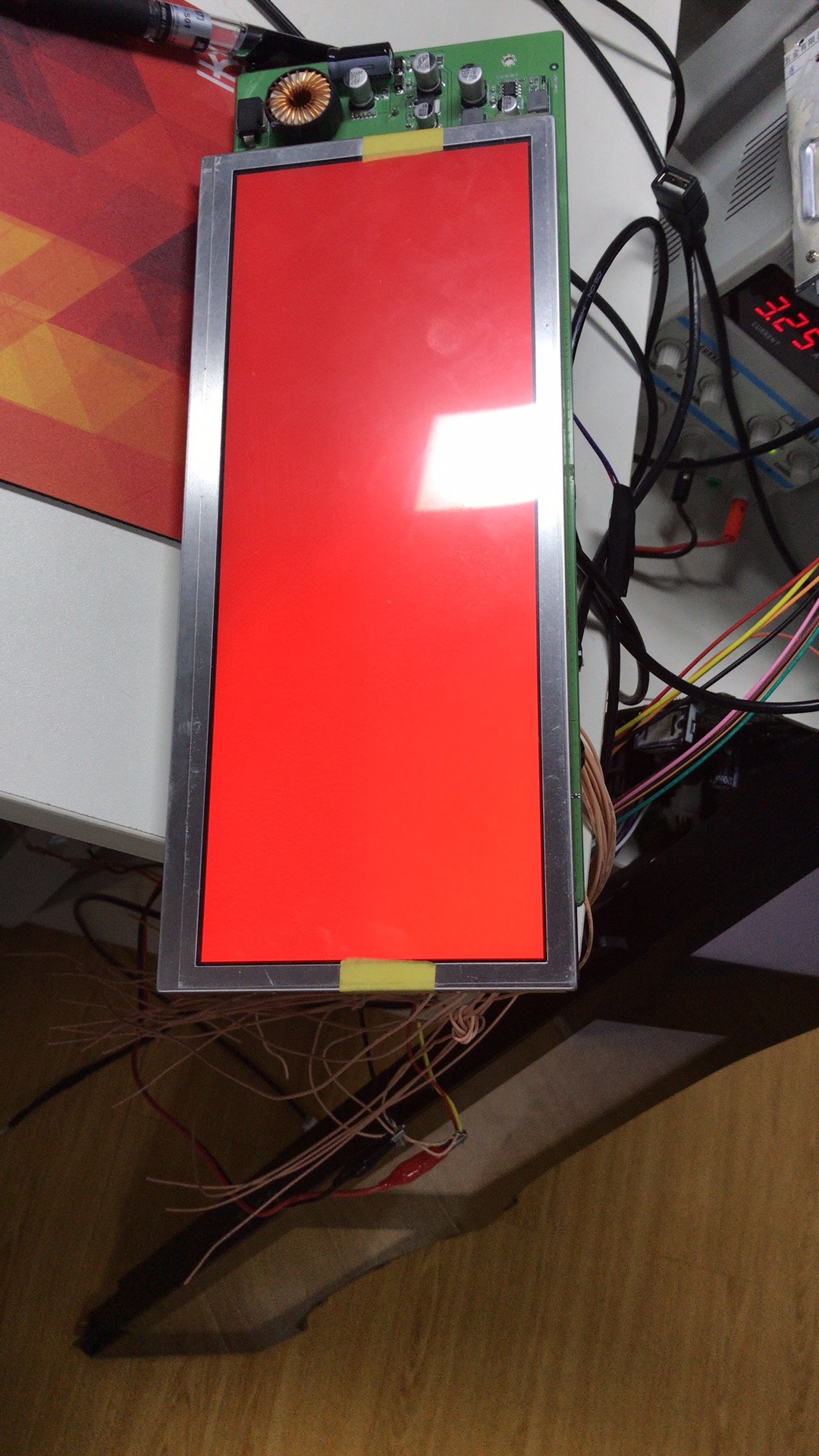

921 test pattern：

0 Palaniappan Manickam over 8 years ago in reply to Vickers

TI__Genius 10475 points

Hello,
What is the PCLK frequency of the 921 - 940 link?
Have you tested the internal pattern generation mode and the BIST mode to verify PAS functionality and test the validity of the 921-940 link?

0 Steven(Shenzhen) Shi over 8 years ago

TI__Mastermind 30515 points

please check and feedback:

1. data pattern test is correct or not?

2. the real case resolution?

3. what is the DE signal in UB921 side?

regards,

Steven
