DS90UB964-Q1: Power Supply Rails for each functional blocks

Kenichiro

Part Number: DS90UB964-Q1

[ DS90UB964-Q1 ] Power Supply Rails for each functional blocks

Hi,

Can you please let me know how each functional blocks are powered from each power rails?

We have several rails such as VDDIO, VDD_CSIx, VDDLx, VDD_FPDx, VDD18_Px, VDD18A and VDD_18FPDx. My customer would like to know how each block is powered. It's helpful if you have drawings.

Thank you for your support in advance.
Regards,
Ken

over 7 years ago

0 Palaniappan Manickam over 7 years ago

TI__Genius 10475 points

Ken,

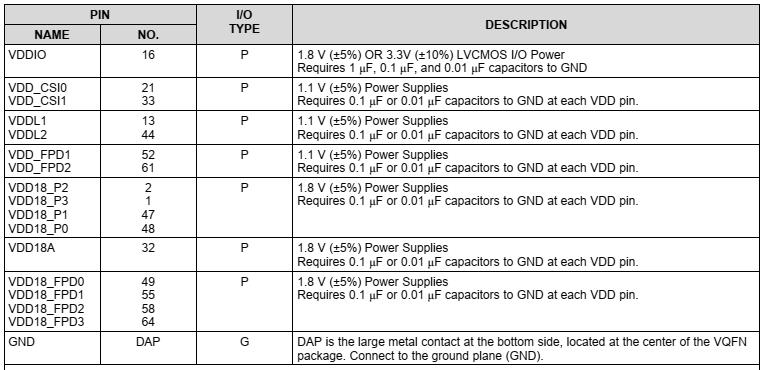

The information customers would need to know are in this table and in the application diagrams in the datasheet - supply levels and tolerance, filtering and AC capacitors etc.
Information on which blocks or internal circuits are powered by which rail is not necessary to use the device, and I don't think we can share either.

0 Kenichiro over 7 years ago in reply to Palaniappan Manickam

Mastermind 9165 points

I see, Pal. Let me discuss with customer.

Thanks,
Ken
