SN65DSI84: May I have schematic for SN65DSI84 EVM ?

Jason Chien42

Expert 1180 points

Part Number: SN65DSI84

Dear Sir:

Does TI can provide DSN file for SN65DSI84 schematic? BTW , Does TI have SN65DSI84 schematic EVM ? Thanks.

Best Regard

Jason

0 Ikechukwu Anyiam over 7 years ago

Hi Jason,

Please find attached:

Regards,

I.K.

0 Jason Chien42 over 7 years ago in reply to Ikechukwu Anyiam

Expert 1180 points

Dear Sir:

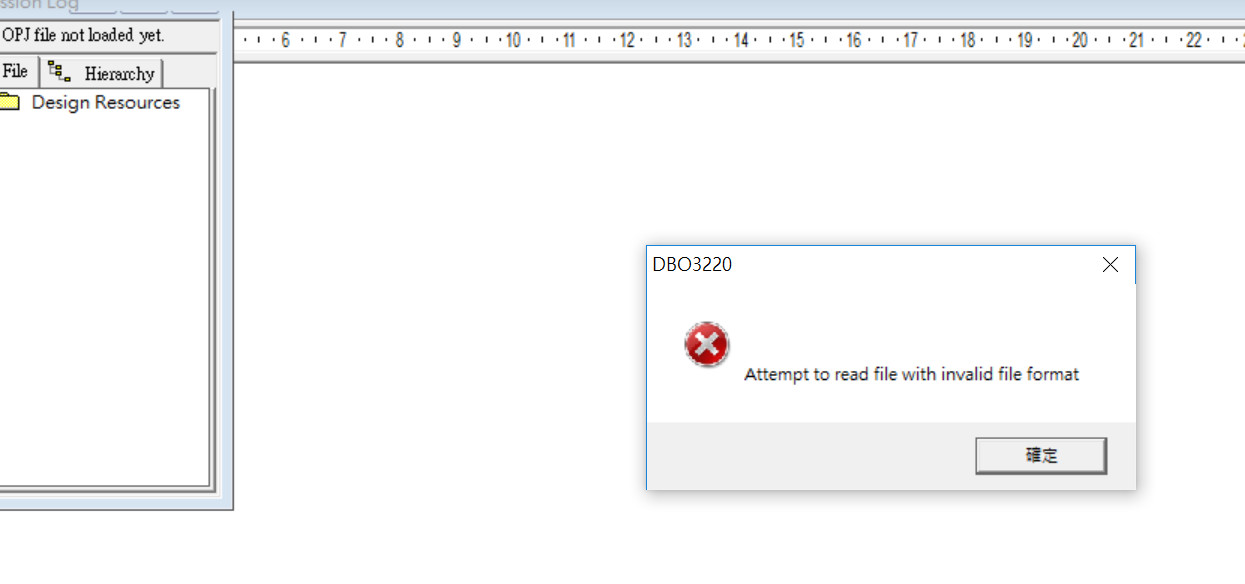

Thanks for your reply, but this file can not open. What kind of ORCAD version does this file can support?

0 Ikechukwu Anyiam over 7 years ago in reply to Jason Chien42

Hi Jason,

I'm not sure about supported versions but I can open the files fine with version 16.6.

Regards,
I.K.
