TCAN1042V-Q1: Electrical connection for center pad for DRB package

Damien Dusha27

Part Number: TCAN1042V-Q1
Other Parts Discussed in Thread: TCAN1042-Q1

Dear All,

I would like to clarify the electrical connection for the center pad of the TCAN1042-Q1 variants in the DRB (VSON-8) package.

The datasheet revision May 2017 does not list the connection for center pad on the pin functions on Page 4.

It says on the mechanical drawing that "The package thermal pad must be soldered to the printed circuit board for thermal and mechanical performance" but does not specify the electrical connection.

Could I please confirm that the center pad can be safely connected to GND?

Kind regards,

Damien.

over 7 years ago

0 BO over 7 years ago

TI__Genius 12760 points

Hi Damien,

our experts will look at that and come back asap.

Regards, Bernd

0 Damien Dusha27 over 7 years ago in reply to BO

Prodigy 40 points

Hi Bernd,

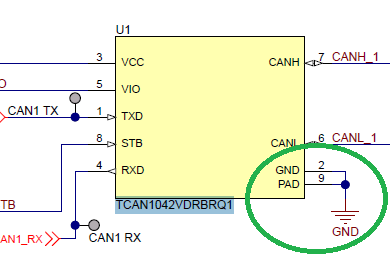

It looks like one of your example designs have the centre pad connected to GND.

To move our design forward, we will do the same, but it will be nice to have clarification as to what the pad is actually electrically connected to.

Thanks!

Damien.

0 BO over 7 years ago in reply to Damien Dusha27

TI__Genius 12760 points

Hi Damien,

well done. I have seen that too and in 99% such pads are connected to GND but I prefer to have this remark in the datasheet.

Regards, Bernd

0 BO over 7 years ago in reply to BO

TI__Genius 12760 points

Eric,
can you confirm our findings?
Will this remark for thermal pad connection show up in the next datasheet release?

Regards, Bernd

0 Eric Schott1 over 7 years ago in reply to BO

TI__Guru 53555 points

Hi All,

In many similar devices, there is no internal electrical connection to the thermal pad, but it is recommended to be tied to GND to improve heat dissipation.

I'll run some tests on this device in particular to confirm. I'll also see if we can include a note on this in a datasheet revision.

Regards,
Eric
