TPS2547: TPS2547 : Cradle for PDA of TPS2547

Gabriel Woo

Prodigy 20 points

Part Number: TPS2547
Other Parts Discussed in Thread: TPS2546

To. Whom it may concern

Customer is developing Cradle for PDA.

TPS2547 is under review for application to Cradle.

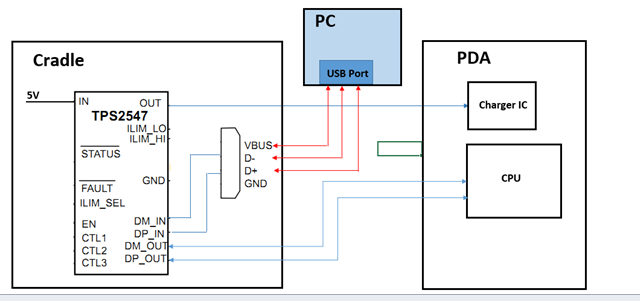

The customer wants to configure as shown in the figure below.

Could this section need to be modified?

And, If the customer connect to PC as below, they want to know if there is any problem in operation as client.

over 7 years ago

0 Adam Mc Gaffin over 7 years ago

TI__Mastermind 30000 points

Hello Gabriel,

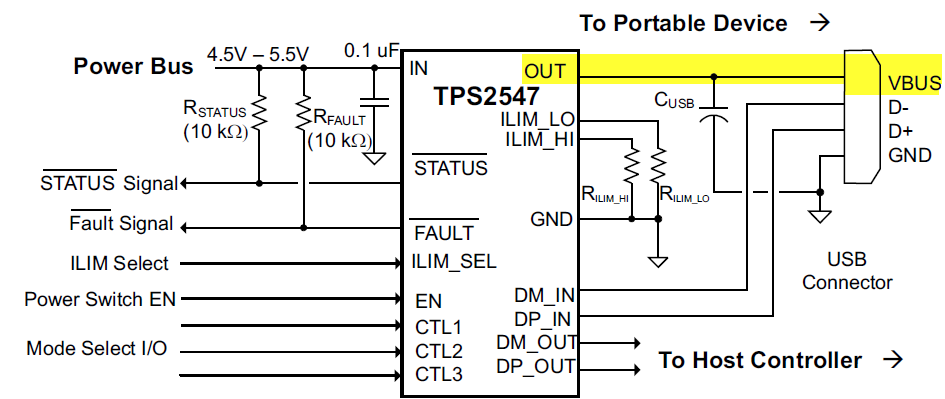

The OUT pin from the TPS2546 needs to be connected to VBUS on the Type-A connector. The IN pin will be connected to a system 5V. Everything else looks fine though. Let me know if this helps answer your question! If so, please click this resolved my issue

0 Gabriel Woo over 7 years ago in reply to Adam Mc Gaffin

Prodigy 20 points

hello Adam

Thank you for your answer.

I have one more question.

The customer wants to use USB port of Cradle as OTG port.

Is there any problem in operation when it connect to a host device like PC?

0 Adam Mc Gaffin over 7 years ago in reply to Gabriel Woo

TI__Mastermind 30000 points

Hello Gabriel,

Would you mind elaborating on how the customer intends to use the device as a OTG port?

Will you connected the device the TPS2546 is in to a charger or a port on a laptop?

Regards,
Adam
