DS90UB914A-Q1: Is there an eye diagram mask definition available?

user4921820

Part Number: DS90UB914A-Q1

Dear TI,

I would like to setup a mask test on my oscilloscope to verify the eye diagram of the DS90UB913/ DS90UB914 chipsets on my Evaluationboards.

I need the parameters as shown in the picture.

Many thanks and best regards,

Muhammed Güngör

0 Hamzeh Jaradat over 7 years ago

Hello Muhammed,

please see the 914A datasheet on page 9 you will find the info of the eye-hight and eye-width.

0 user4921820 over 7 years ago in reply to Hamzeh Jaradat

Hello Hamzeh,

thank you for the answer, but for creating the mask i need 8 points.

Only Ew and Eh is not enought for creating the mask.

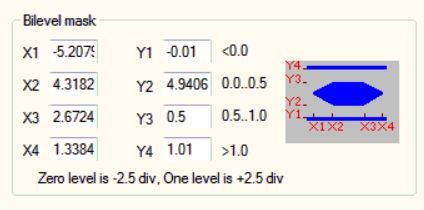

In the following window, the params for creating the mask is shown.

best regards,

Muhammed Güngör

0 user4921820 over 7 years ago in reply to Hamzeh Jaradat

Only Ew and Eh is not enought for creating the mask.

0 Palaniappan Manickam over 7 years ago in reply to user4921820

This has been taken up offline with the FAE creating an internal request, so marking the thread as closed.
