DS90UB934-Q1: PDB Pulse Width(T4)

Kuramochi Tadahiko

Guru 28715 points

Part Number: DS90UB934-Q1

Hi,

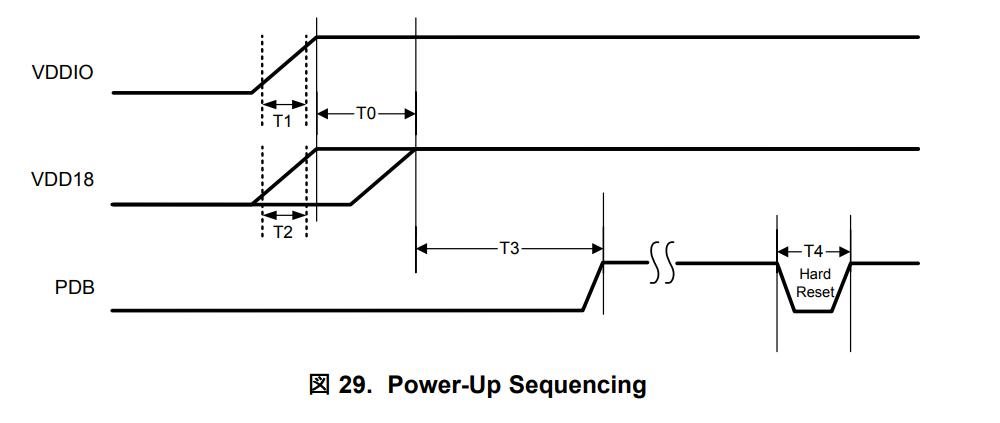

PDB Pulse Width(T4) is specified as below.

Does it mean that Hard Reset is required whenever power-up?

Best Regards,

Kuramochi

over 7 years ago

0 Palaniappan Manickam over 7 years ago

TI__Genius 10475 points

Kuramochi-san,
What the T4 refers to is that the whenever hard reset is done through PDB pin, the pin must be held low for a minimum duration (2ms) for it to take effect.

0 Kuramochi Tadahiko over 7 years ago in reply to Palaniappan Manickam

Guru 28715 points

Palaniappan-san,

Thank you for your reply.

I'm sorry for my uncertain question.

According to above picture, it looks like that hard reset is required after power-up.

Is my understanding correct?

Best Regards,

Kuramochi

0 Palaniappan Manickam over 7 years ago in reply to Kuramochi Tadahiko

TI__Genius 10475 points

Kuramochi-san,
It is recommended to do the PDB reset after power-up to be on the safe side. This way everything is in a known state to start with by issuing a PDB when the power supplies are all properly ramped up and in steady state.
