DP83822I: Lower down the temperature

Shu-Cheng LIN

Part Number: DP83822I

Hi Sirs,

Sorry to bother you.

Currently measuring Chip will have a high temperature (48 C at room temperature)
Could you share experience how to lower down the temperature?

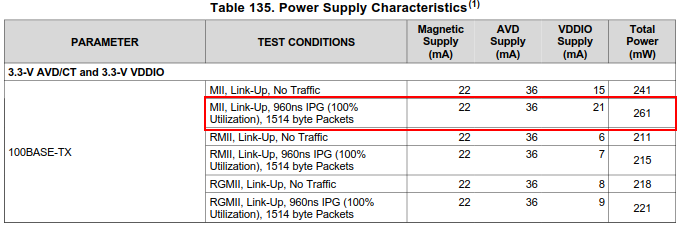

1. How to design to reduce the power consumption in this IC?

Thanks!!

over 7 years ago

0 Ross Pimentel over 7 years ago

TI__Mastermind 23675 points

Hi Shu-Cheng,

You can lower the powered by operating the PHY at 1.8V.
There is no other adjustment you can make to lower power.

0 Shu-Cheng LIN over 7 years ago in reply to Ross Pimentel

Guru 11785 points

Hi Sirs,

Thanks for your reply.

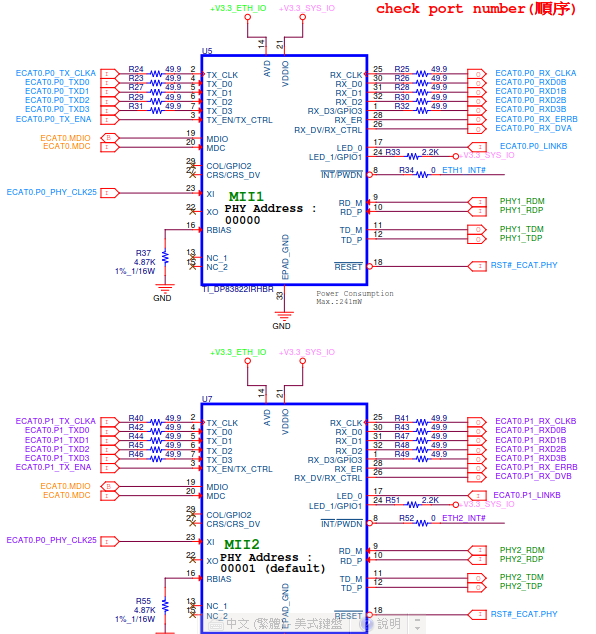

So may i just change AVD to 1.8V, VDDIO still at 3.3v, right??

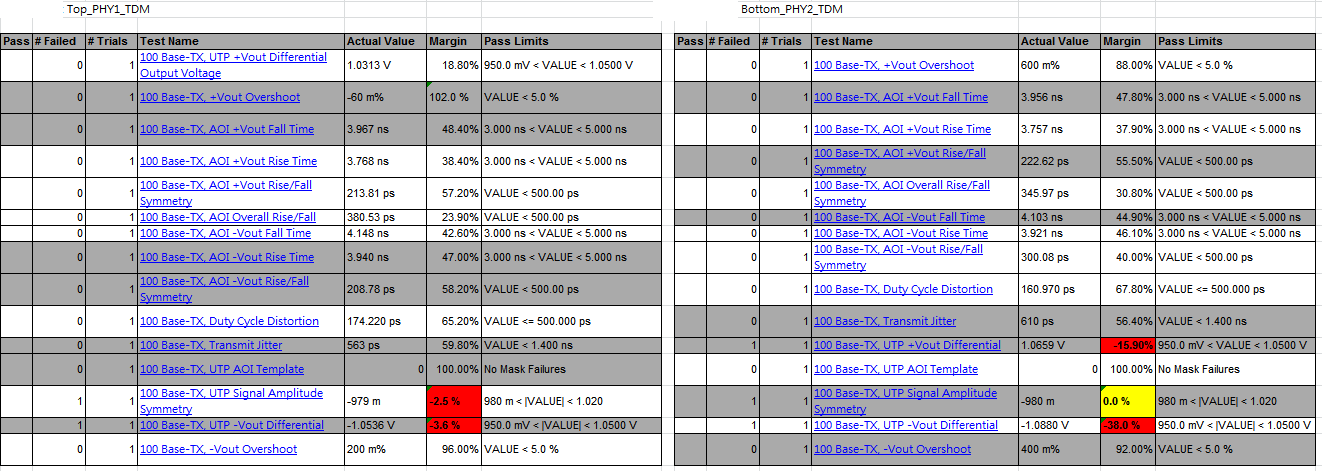

The other thing is our phy performance tested some items will be error (Red)

We would like to know how to improve this?

Any suggestion are welcome.

0 Ross Pimentel over 7 years ago in reply to Shu-Cheng LIN

TI__Mastermind 23675 points

Hi Shu-Cheng,

Yes, you can operate the PHY at 1.8V AVD and 3.3V VDDIO.

As for the failures, please send me the magnetic you are using.
Also, please confirm that there are 49.9 ohm pull-up termination resistors on RD+/- and TD+/-.
Is there any way you can send us the layout?
Are you maintaining 100 ohm impedance control on the MDI?

For the high amplitude, you can reduce the driver strength using register 0x403.

0 Shu-Cheng LIN over 7 years ago in reply to Ross Pimentel

Guru 11785 points

Hi Sirs,
Could you share mail address then i can send layout for you.
Thanks!!

0 Shu-Cheng LIN over 7 years ago in reply to Shu-Cheng LIN

Guru 11785 points

Or my mail address is eric.sc-lin@wtmec.tw

0 Ross Pimentel over 7 years ago in reply to Shu-Cheng LIN

TI__Mastermind 23675 points

Hi Shu-Cheng,

I just sent you an email but it bounced back.
I will send you my email over E2E friend request.
