HD3SS215: Paralleling two devices at the output port

Roy Hsu

Genius 9390 points

Part Number: HD3SS215
Other Parts Discussed in Thread: TS3DV642,

Hi Team,

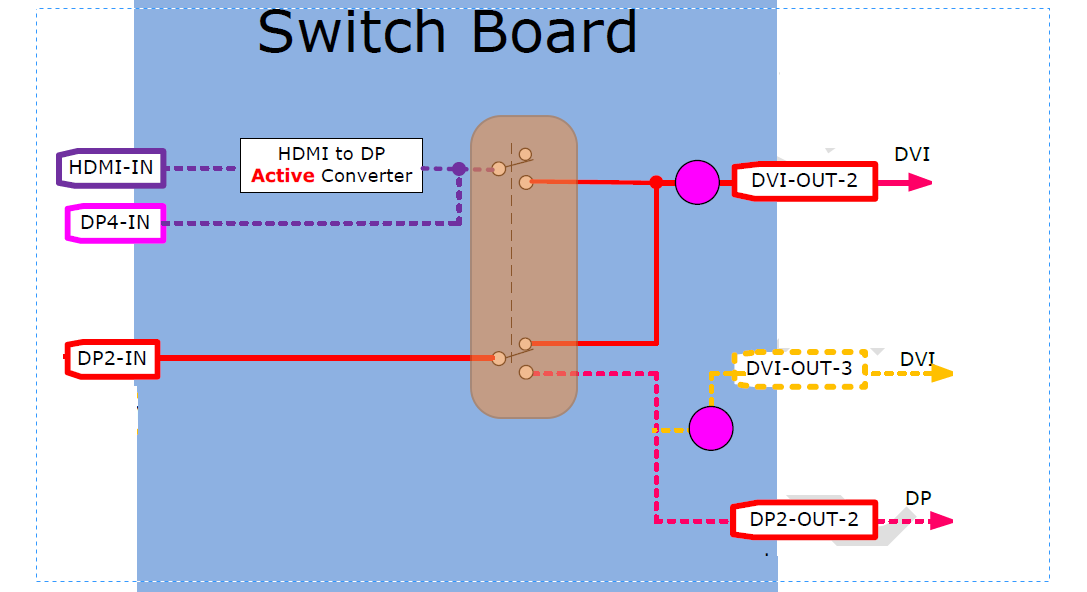

Regarding the diagram below, I'm thinking about doing it with two TS3DV642 or two HD3SS215.

Now, is it OK to parallel two devices at the output port of either of the two devices? (The orange dashed rectangle)

Thanks!

Roy Hsu

over 7 years ago

0 Brian Zhou over 7 years ago

TI__Guru*** 144765 points

you are trying to switch signal between HDMI and DP? their termination is different. can you show detailed schematic?

0 Roy Hsu over 7 years ago in reply to Brian Zhou

TI__Genius 9390 points

Hi Brian,

There's no detailed schematic as of now since the customer is still selecting components.

From the diagram, the HDMI signals are converted into DP signals before entering the switch so I think the application is all about DP signals.

Could you please point out the concerns you have?? And do you think there's any problem about paralleling two devices at the output?

Thanks!
Roy Hsu

0 Brian Zhou over 7 years ago in reply to Roy Hsu

TI__Guru*** 144765 points

it could be signal integrity issue >5G if you parallel two devices together

Regards
Brian
