TUSB1044: HUB EEPROM overwrite issue

Driscoll Tsai

Expert 1590 points

Part Number: TUSB1044
Other Parts Discussed in Thread: TUSB8044, TUSB8040, TUSB4041I

Hi Sir,

Is there any method to switch the HUB driver from Generic mode to Programming mode automatically ?

Our goal is to overwrite the PCB serial number(PCB SN) by the finished goods serial number(FGSN) into HUB EEPROM in FATP(final assembly, testing and packing) stage without manually switch the driver mode.
Status description: our product manufacture has two stages, SMT ( surface mount technology ) and FATP.

In SMT stage, we will burn a PCB SN (for PCBA tracking) in HUB EEPROM. Before this step, HUB driver default in programming mode. After burning PCB SN, HUB driver automatically changes to generic mode(non-programming mode).

In the FATP stage, we can’t overwrite PCB SN by FGSN until the HUB driver is changed into programming modemanually.

thanks~

Regards,

Driscoll

over 7 years ago

0 Undrea Fields over 7 years ago

TI__Genius 12730 points

Hi, I assume you are referring to the TUSB8044 HUB correct?

0 Driscoll Tsai over 7 years ago in reply to Undrea Fields

Expert 1590 points

Hi Sir,
Part number is TUSB4041IPAPR.
thanks~

Regards,
Driscoll

0 JMMN over 7 years ago in reply to Driscoll Tsai

TI__Guru 60870 points

Hi Driscoll,

The hub will automatically come up in programming mode if there is a blank EEPROM attached, but it defaults to regular operation mode with a programmed EEPROM. To force it back to programming mode, the driver must be manually loaded.

Regards,
JMMN

0 Driscoll Tsai over 7 years ago in reply to JMMN

Expert 1590 points

Hi JMMN,

We have another HUB issue. The "TUSB8040 EEPROM Programmer" open time is getting longer. It drags our produce speed.
We open the programming tool before downloading FW, then close the programming tool. At first, the tool opening only takes 1s. After 200 rounds, it takes 60s or more.
We had tried reboot PC, reinstall programming tool and reinstall programming driver, but it didn't work.

1. Any possibility that "TUSB8040 EEPROM Programmer" open time is getting longer?
2. Does updates solve this issue? (If so, please provide the latest tool and driver.)

Thanks.

Our download device information
Our PC System : Window 7
Programming Tool version : 1.0
Programming Driver : TI TUSB8040 EEPROM Programming Endpoint
Programming Driver version : 1.0.1.0
Part Number : TUSB4041i

Have a nice day.

Regards,
Driscoll

0 JMMN over 7 years ago in reply to Driscoll Tsai

TI__Guru 60870 points

HI Driscoll,

You have the latest version of the tool. Is it possible to leave the utility open? Or are there programming issues?

Regards,
JMMN

0 Driscoll Tsai over 7 years ago in reply to JMMN

Expert 1590 points

Hi JMMN,

Which "utility" do you mean?
I find another E2E answer.
e2e.ti.com/.../568012
Do you mean that?

Regards,
Driscoll

0 JMMN over 7 years ago in reply to Driscoll Tsai

TI__Guru 60870 points

HI Driscoll,

My question is: is it possible to leave the programming utility open and just connect each new board and program it?

Regards,
JMMN

0 Driscoll Tsai over 7 years ago in reply to JMMN

Expert 1590 points

Hi JMMN,

It can't do that. We tried to this way. When I connect other board, the programming will become gray and can not program.

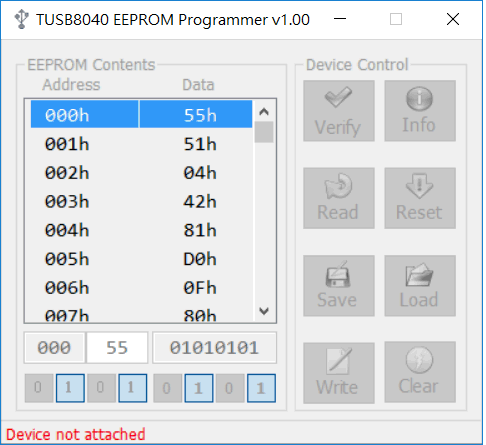

As show below image.

We sure we have connect device (PCB board).

Have a nice day.

Driscoll

0 Driscoll Tsai over 7 years ago in reply to Driscoll Tsai

Expert 1590 points

Hi Sir,

Has any update?
thanks.

Regards,
Driscoll

0 JMMN over 7 years ago in reply to Driscoll Tsai

TI__Guru 60870 points

Driscoll,

I will need to investigate in our lab.

Regards,
JMMN

0 Driscoll Tsai over 7 years ago in reply to JMMN

Expert 1590 points

Hi JMMN,

Has any update?

BTW, we have recently a issue in factory. We reprogram the HUB EEPROM at FATP(final assembly, testing and packing), the HUB driver should be automatically changes to generic mode(non-programming mode). But some product's HUB driver keep programming mode. It cause these products loss HUB function.

1. Why the HUB driver will not automatically changes to generic mode?
2. Do you have anything solution?

Have a nice day.
Regards,
Driscoll

0 JMMN over 7 years ago in reply to Driscoll Tsai

TI__Guru 60870 points

Hi Driscoll,

There are two reasons for the hub to remain in programming mode:

SMBUSz is asserted and the SMBUS host has not set/cleared the cfg active bit
An unprogrammed EEPROM is attached

It is most likely the EEPROM failed to program. After using the programming utility to load the file into the EEPROM they can verify if it loaded or not.

Regards,
JMMN

0 JMMN over 7 years ago in reply to JMMN

TI__Guru 60870 points

I would recommend reading back at least the first register to confirm it was been written.

Also, in our lab we are able to open and close the utility 100s of times without it slowing down, have you found the cause of this issue?
