TUSB1002A: About role of R15 and R16

Hide

Guru 21045 points

Part Number: TUSB1002A

Hi Team,

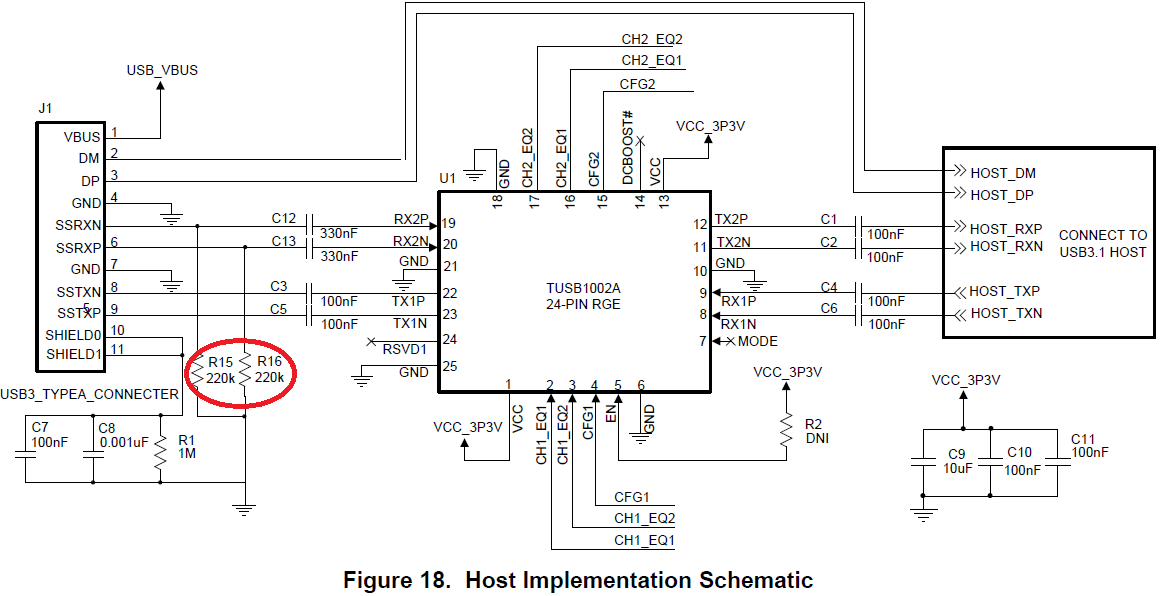

We would like to know about role of R15 and R16.

And, is these resistors necessary?

Regards,

Kanemaru

over 7 years ago

0 David (ASIC) Liu over 7 years ago

TI__Guru**** 185921 points

Kanemaru

R15 and R16 are optional, they are there to help providing compatibility support with some USB3 devices on the market that do not comply to the USB common mode voltage requirement in the spec.

Thanks
David

0 Hide over 7 years ago in reply to David (ASIC) Liu

Guru 21045 points

Hi David-san,

Thank you for your prompt reply.

I understand. Thank you very much.

Regards,

Kanemaru
