TMDS181: "tx_(X)f_(Y)e_termination" in IBIS-AMI Models user's guide

S.Satoshi

Part Number: TMDS181

Hi,

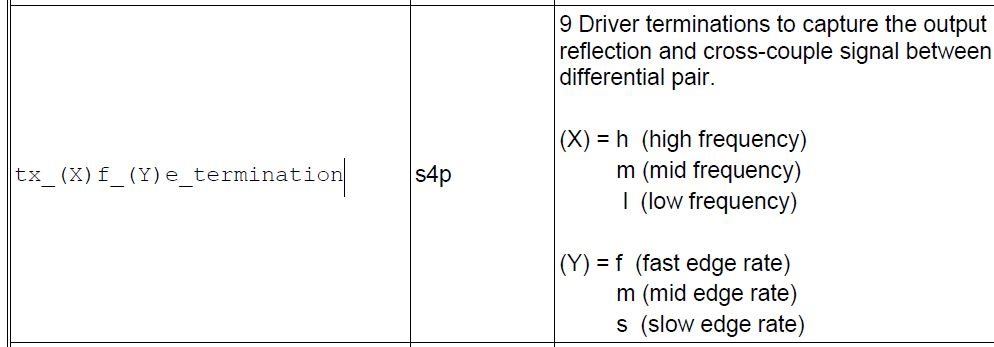

Please let me ask the tx_(X)f_(Y)e_termination.s4p file that relate to IBIS AMI model.

There are the parameter that are X and Y, and my understanding about frequency range is as below. Is my understanding correct?

h (high frequency) : Data rate (DR) > 3.4 Gbps
m (mid frequency) : 2 Gbps > DR < 3.4 Gbps
l (low frequency) : DR < 2 Gbps

Then please let me know how to select edge rate that is parameter (Y)?

Best Regards,

Satoshi / Japan Disty

over 7 years ago

0 David (ASIC) Liu over 7 years ago

TI__Guru**** 190041 points

Sonoki-san

Please let me take a look at the model and reply back to you as soon as possible.

Thanks
David

0 David (ASIC) Liu over 7 years ago in reply to David (ASIC) Liu

TI__Guru**** 190041 points

Sonoki-san

Your understanding is correct.

Thanks
David

0 S.Satoshi over 7 years ago in reply to David (ASIC) Liu

Guru 21685 points

Hi David,

Thank you for your comment. And can you also give your comment how we should select the edge rate parameter (Y)?

Best Regards,
Satoshi

0 David (ASIC) Liu over 7 years ago in reply to S.Satoshi

TI__Guru**** 190041 points

Satoshi-san

The setting would be system dependent, I would make it as a sweep parameter and use the one that results in the best eye diagram.

Thanks
David
