TCA9555: Help to check TCA9555

Helios Yang

Prodigy 530 points

Part Number: TCA9555

Hi, My customer have a question about TCA9555RTWR I/O pin.

Is it internal weak pull high 100K to Vcc when sets to input and undriven?? Could you help to check? Thanks

over 6 years ago

0 Helios Yang over 6 years ago

TI__Prodigy 530 points

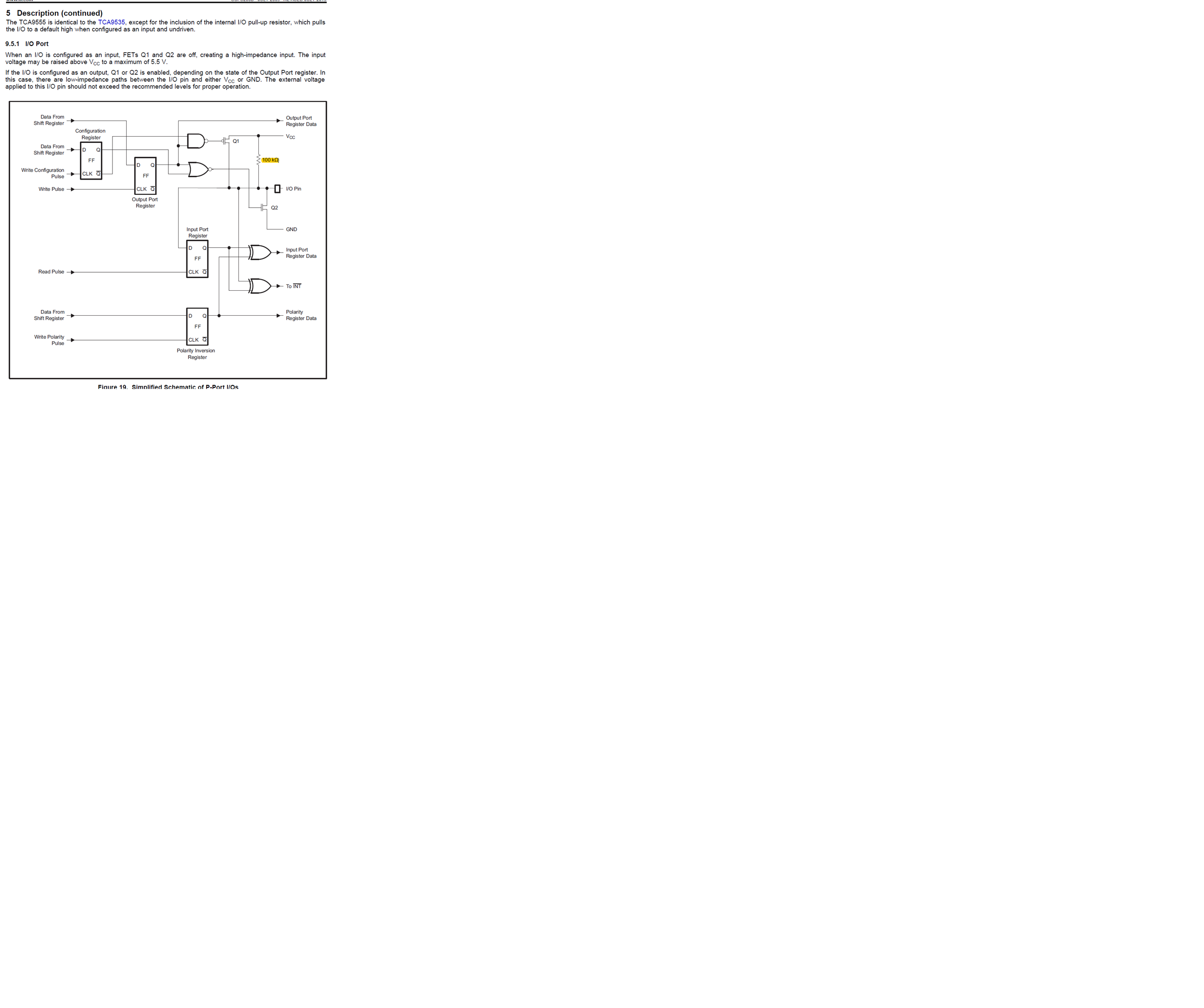

Attached the mesage we found in DS.

0 BOBBY over 6 years ago in reply to Helios Yang

TI__Guru 72751 points

Hello Helios,

That is correct, Vcc is tied to the I/O pin with a weak internal pull up resistor (I measured with a multi meter while the device was unpowered and found the resistance to be about 80k ohms.

When this device is set as an input (such as during start up) it will always be referenced to Vcc (not floating).

Thanks,
-Bobby
