HD3SS215: Could you tell me about HD3SS215?

Pokkun

Genius 4695 points

Part Number: HD3SS215
Other Parts Discussed in Thread: SN65DP159, TMDS181

Hi, team.

My customer is trying to use "HD3SS215".

Since there was a question about "HD3SS215" from the customer, please tell me this.

Q1：My customer plans to configure two sources and to one sink application using HD3SS215.

　　 Their plan is to connect HDMI Input Connector on one source side.

Is it OK to connect HDMI Input Connector?

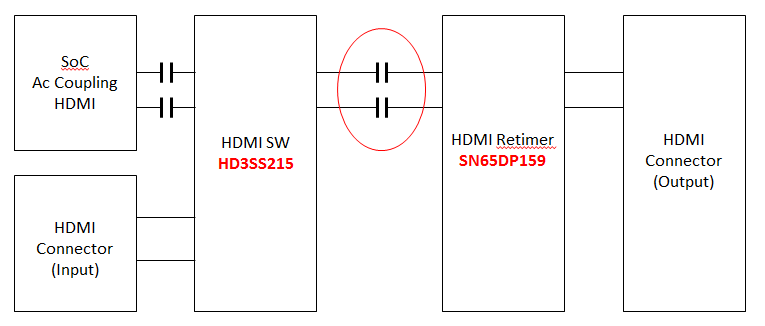

Q2：On the above system configuration, does it require AC coupling capacitors between HD3SS215 and SN65DP159?

Could you help me?

Best regards,

Masumi Sekiguchi

over 7 years ago

0 David (ASIC) Liu over 7 years ago

TI__Guru**** 190151 points

Masumi-san

You do not need AC coupling capacitor between HD3SS215 and SN65DP159 since it is already AC coupled on the other side of HD3SS215. But without AC coupling cap, then SN65DP159 will not work with input HDMI connector since the path is DC coupled, so you need to replace SN65DP159 with TMDS181.

Thanks
David

0 Pokkun over 7 years ago in reply to David (ASIC) Liu

Genius 4695 points

Thanks for the reply, David-san!

Please tell me in addition.

Which of the following applies, if this application?
① Can it be realized only with TMD181?
② Is it necessary to realize by TMD181 and TMD159 by signal?

Could you help me?

Best regards,
Pokkun(Masumi Sekiguchi)

0 David (ASIC) Liu over 7 years ago in reply to Pokkun

TI__Guru**** 190151 points

Masumi-san

Would you please elaborate your question? TMDS181 is a HDMI retimer, it can't switch between two HDMI source.

In your block diagram, instead using TMDS159, I would propose use TMDS181.

Thanks
David

0 Pokkun over 7 years ago in reply to David (ASIC) Liu

Genius 4695 points

Hi, David-san.

Thanks for your advice.

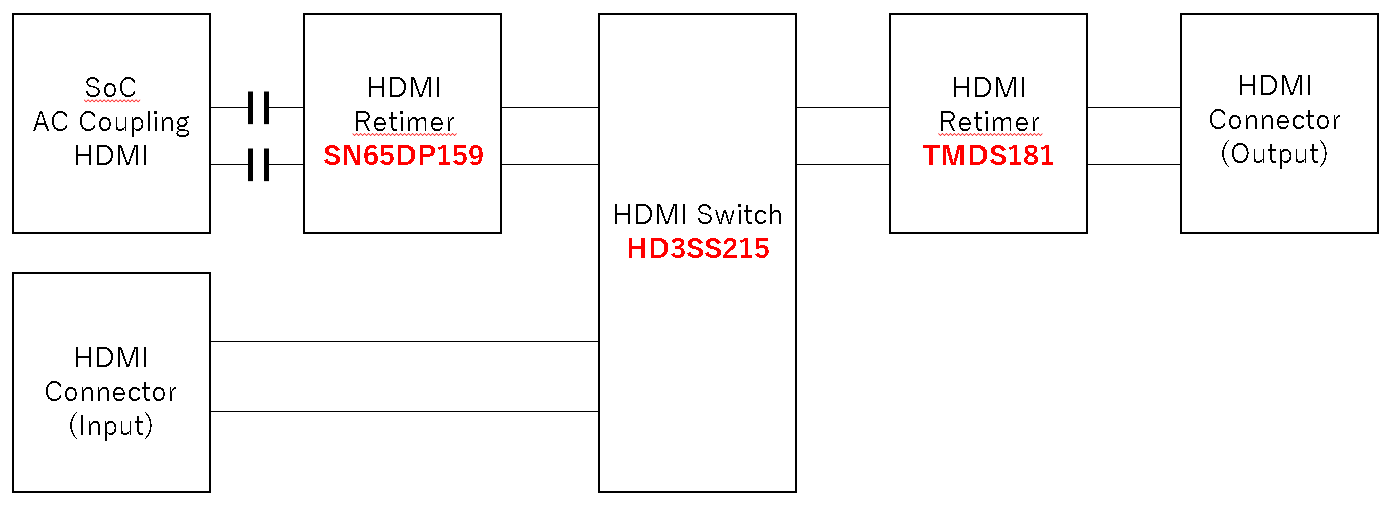

To connect SoC(AC Coupling) and input connector to HDMI Switch, I plan to insert retimer(SN65DP159) between SoC and HDMI switch. Will this configuration work?

Best regards,

Masumi Sekiguchi

0 David (ASIC) Liu over 7 years ago in reply to Pokkun

TI__Guru**** 190151 points

Masumi-san

TMDS181 can handle AC couple input, you do not need SN65DP159. Having two retimer in the same signal path is an overkill unless you have significant channel loss you are trying to compensate.

Thanks
David

0 Pokkun over 7 years ago in reply to David (ASIC) Liu

Genius 4695 points

Hi David,

Let me confirm about the configuration.

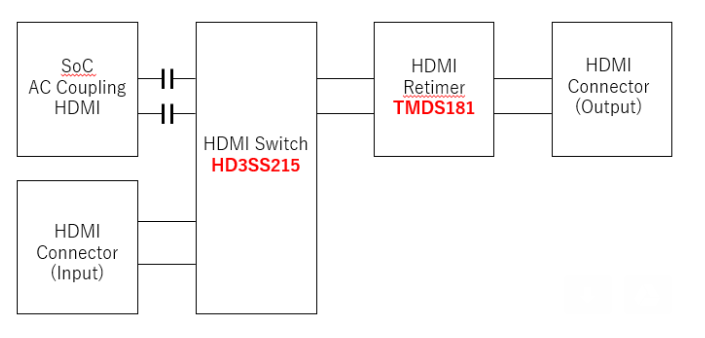

In case of connection both SoC(AC Coupling) and HDMI connector to HD3SS215, is the configuration as shown below?

Best regards,

Masumi Sekiguchi

0 David (ASIC) Liu over 7 years ago in reply to Pokkun

TI__Guru**** 190151 points

Masumi-san

The block diagram is correct.

Thanks
David
