SN65DSI84: Test pattern OK but no picture otherwise.

Part Number: SN65DSI84
Other Parts Discussed in Thread: DSI-TUNER

Hi,

We're having significant issues in getting LVDS output from our IMX8-module from Variscite. It has the SN65DSI84 mounted on the module. We can only measure on the LVDS side.

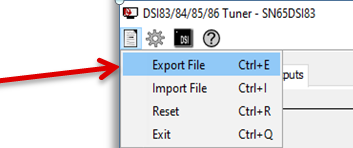

Attached below are display datasheet and two outputs from DSI Tuner (with and without test pattern enabled) together with yocto linux parameters for the DSI interface.

Test pattern works fine. LVDS clock is running at an OK frequency.

But we can't get any picture on the screen when test pattern is disabled.

Reading register 0xE5 gives either 0xC1 or 0x01 depending on the timing parameters.

As a sidenote we halso have a 7" single LVDS screen that can show picture (with and without test pattern) and still reports 0x01 from register 0xE5.

Questions

  1. How significant are these errors (PLL_UNLOCK, CHA_CRC_ERR, CHA_SYNCH_ERR).
  2. What conclusions can we draw from them? What to troubleshoot?
  3. Should we change anything in the Yocto DSI config, e.g. some of the flags that are needed?
  4. Any other ideas for troubleshooting?

Best regards

Christian

LM238WF1-SLK1_General_CAS.PDF

//=====================================================================
// Filename   : CSR_02_eg.txt
//
//   (C) Copyright 2013 by Texas Instruments Incorporated.
//   All rights reserved.
//
//=====================================================================
0x09              0x00
0x0A              0x05
0x0B              0x10
0x0D              0x00
0x10              0x26
0x11              0x00
0x12              0x2f
0x13              0x00
0x18              0x6f
0x19              0x00
0x1A              0x03
0x1B              0x00
0x20              0x80
0x21              0x07
0x22              0x00
0x23              0x00
0x24              0x00
0x25              0x00
0x26              0x00
0x27              0x00
0x28              0xe1
0x29              0x03
0x2A              0x00
0x2B              0x00
0x2C              0x26
0x2D              0x00
0x2E              0x00
0x2F              0x00
0x30              0x03
0x31              0x00
0x32              0x00
0x33              0x00
0x34              0x29
0x35              0x00
0x36              0x00
0x37              0x00
0x38              0x00
0x39              0x00
0x3A              0x00
0x3B              0x00
0x3C              0x00
0x3D              0x00
0x3E              0x00


The PLL_EN bit and SOFT_RESET bit are not set as they need to be set per the recommended sequence defined in the datasheet

//=====================================================================
// Filename   : CSR_02_eg_pattern.txt
//
//   (C) Copyright 2013 by Texas Instruments Incorporated.
//   All rights reserved.
//
//=====================================================================
0x09              0x00
0x0A              0x05
0x0B              0x10
0x0D              0x00
0x10              0x26
0x11              0x00
0x12              0x2f
0x13              0x00
0x18              0x6f
0x19              0x00
0x1A              0x03
0x1B              0x00
0x20              0xc0
0x21              0x03
0x22              0x00
0x23              0x00
0x24              0x38
0x25              0x04
0x26              0x00
0x27              0x00
0x28              0xe1
0x29              0x03
0x2A              0x00
0x2B              0x00
0x2C              0x26
0x2D              0x00
0x2E              0x00
0x2F              0x00
0x30              0x03
0x31              0x00
0x32              0x00
0x33              0x00
0x34              0x29
0x35              0x00
0x36              0x15
0x37              0x00
0x38              0x3d
0x39              0x00
0x3A              0x15
0x3B              0x00
0x3C              0x10
0x3D              0x00
0x3E              0x00


The PLL_EN bit and SOFT_RESET bit are not set as they need to be set per the recommended sequence defined in the datasheet

static const struct drm_display_mode lg_lm238wf1_mode = {
    .clock = 54000,
    .hdisplay = 1920,
    .hsync_start = 1920 + 61,
    .hsync_end = 1920 + 61 + 41,
    .htotal = 1920 + 61 + 41 + 38,
    .vdisplay = 1080,
    .vsync_start = 1080 + 21,
    .vsync_end = 1080 + 21 + 21,
    .vtotal = 1080 + 21 + 21 + 3,
    .vrefresh = 60,
};

static const struct panel_desc_dsi lg_lm238wf1 = {
	.desc = {
		.modes = &lg_lm238wf1_mode,
		.num_modes = 1,
		.bpc = 8,
		.size = {
			.width = 527,
			.height = 296,
		},
	},
	.flags = MIPI_DSI_MODE_VIDEO | MIPI_DSI_MODE_VIDEO_BURST | MIPI_DSI_MODE_VIDEO_HSE,
	.format = MIPI_DSI_FMT_RGB888,
	.lanes = 4,
};
