SN75DP130: Questions related to SN75DP130

Sean Lee1

Part Number: SN75DP130
Other Parts Discussed in Thread: TMDS181, TDP142

Hello,

my name is sean

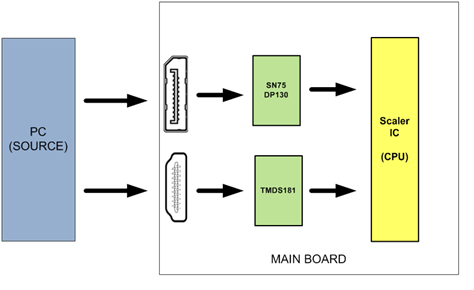

I'll ask you a question about the block diagram attached below.

In case of SN75DP130, the application is used for DP output stage, Please check if it can be used for input like BLOCK diagram.

Above block is SN75DP130 part and also TMDS181 part.
Please check that there is no problem in the circuit diagram below.

Thank you.

over 7 years ago

0 David (ASIC) Liu over 7 years ago

TI__Guru**** 187761 points

Sean

So DP130 will be used in a sink application, please refer to this app note: www.ti.com/.../slla349.pdf for the sink application.

Thanks
David

0 Sean Lee1 over 7 years ago in reply to David (ASIC) Liu

Prodigy 100 points

Hello, david

Thanks for your answer to my question.

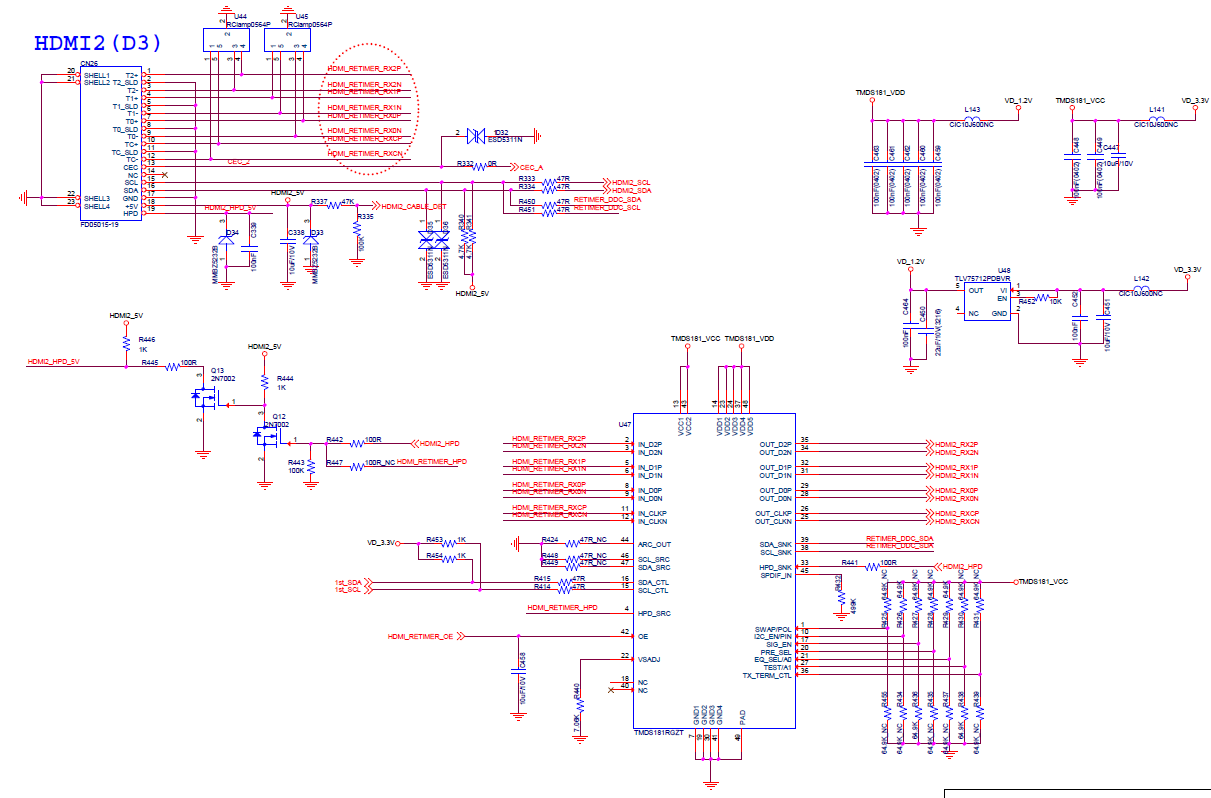

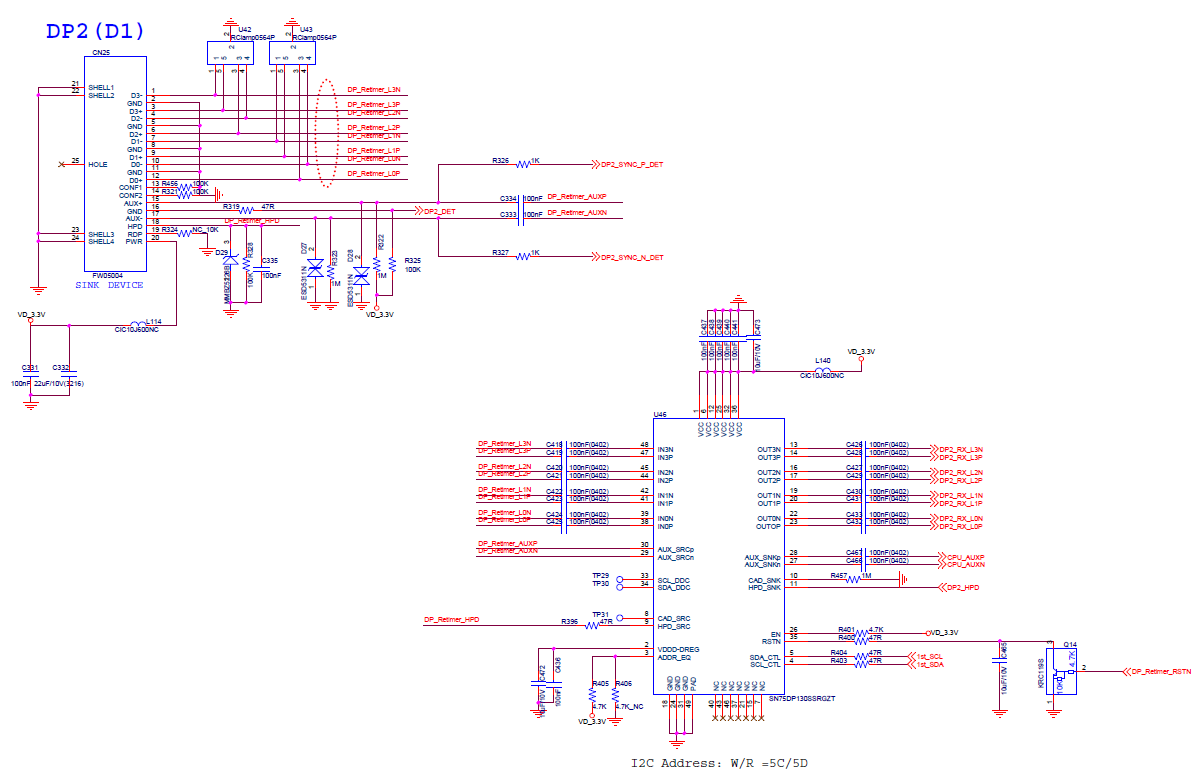

I also added a circuit diagram to my question.
Is there a problem with the schematic configuration?
Please check the circuit diagram.

Thanks

Sean

0 David (ASIC) Liu over 7 years ago in reply to Sean Lee1

TI__Guru**** 187761 points

Sean

On TMDS181
Please have large size cap on TMDS181 1.2V supply
2k pullup on SCL_CTL and SDA_CLT
0.1uF on OE

on DP130
No need to have AC caps on the input if source already has AC coupling caps
Please take a look at the app note on the AUX implementation

For DP130, have you considered TDP142 linear re-driver? TDP142 is easier to design than DP130, I would recommend switching to TDP142 instead using DP130.

Thanks
David
