SN65MLVD206B: Cable requirement

Ryuuichi machida

Guru 12685 points

Part Number: SN65MLVD206B

Hello,

I would like you to confirm cable requirement for M-LVDS.

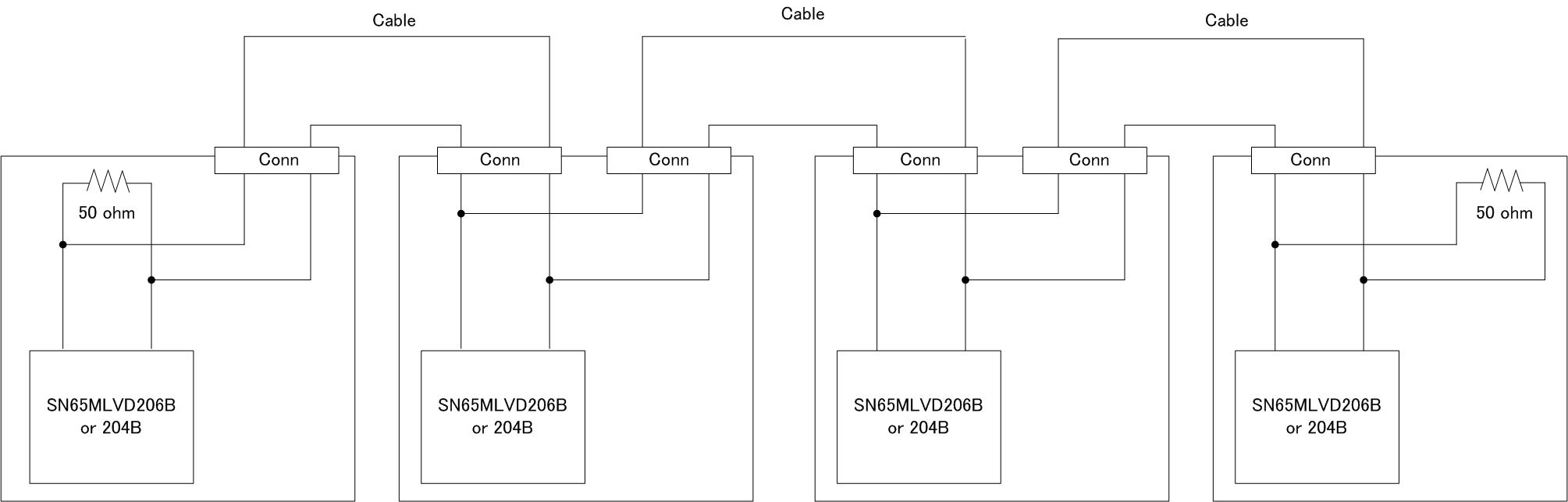

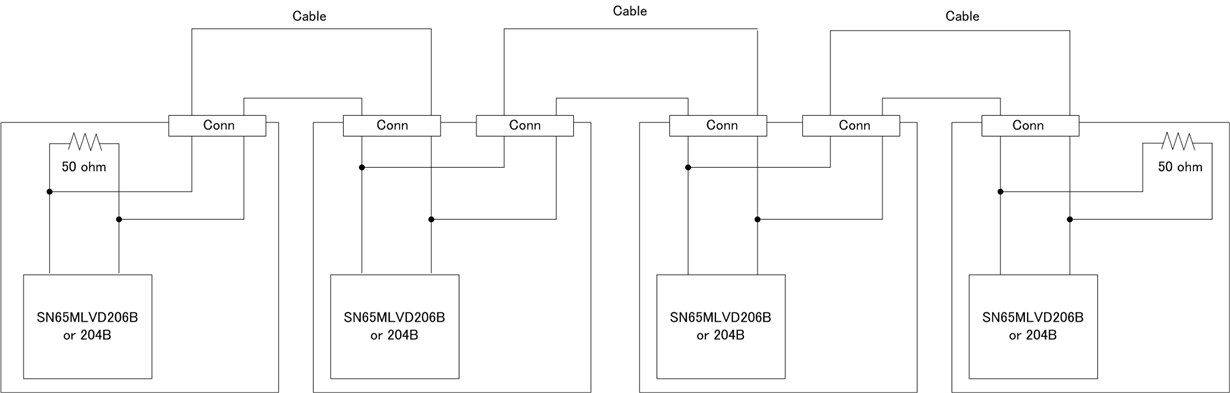

Here is configuration for SN65MLVD206B (4 Transeiver is used).

Could you please confirm cable requirement for above configuration ?

Best Regards,

over 6 years ago

0 Yaser Ibrahim over 6 years ago

TI__Genius 10250 points

Hello Machida-san

Per the M-LVDS standard, the basic cables requirements are that it needs to be twisted pair, the characteristic impedance need to be 100 ohm +/-10%, and the attenuation need to be < 6dB. Typically, Cat5 cables are used. For longer distances and higher rates, shielding and higher wire gauge will be helpful.

Regards,
Yaser

0 Ryuuichi machida over 6 years ago in reply to Yaser Ibrahim

Guru 12685 points

Hello Yaser-san,

According to following page, cable requirement is changed depending on cable category and speed at least.
www.interfacebus.com/Design_Connector_899_MLVDS.html

I also would like to know cable length for each case.
I think that this limitation depends on not only node number and speed but also cable attenuation and category.
Could you show specification(or app note) for TI M-LVDS device ?

BR,

0 Yaser Ibrahim over 6 years ago in reply to Ryuuichi machida

TI__Genius 10250 points

Hello Machida-san,

There are no specific cable requirements beyond what I mentioned. We do have results of rate and distance testing for TI M-LVDS devies for 1 type of cable which is Cat5e: www.ti.com/.../slaa845 .
Also, we do have results from testing LVDS devices with different types of cables: www.ti.com/.../slla053 . This is with LVDS devices, not M-LVDS devices, but it gives you an idea about the effect of the cable type on LVDS performance in general.

Regards,
Yaser
