DS90UB913A-Q1: Serializer delay

na na78

Guru 16770 points

Part Number: DS90UB913A-Q1

Our customer has following question.

Could you please answer it?

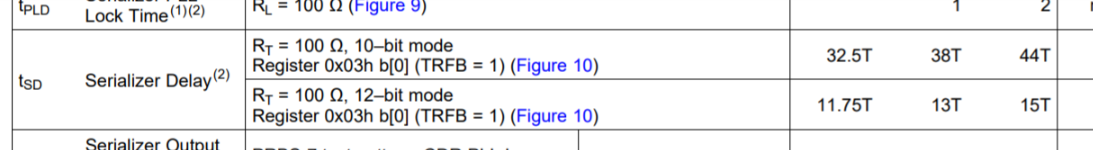

tSD is shown as 32.5T (min) and 44T(max) on the datasheet.

What is the cause of this variability?

It seems to be too much even though it is caused of PCLK jitter.

BestRegards

over 7 years ago

0 Palaniappan Manickam over 7 years ago

TI__Genius 10475 points

Hello,
This is a function of the PCLK frequency/period and whether its 10-bit mode or 12-bit. The variation can be caused by the quality of the PCLK and how clean it is.

0 na na78 over 7 years ago in reply to Palaniappan Manickam

Guru 16770 points

Hi Palaniappan

Thank you for your reply.

I will inform the customer of your advice.

Let me open another question if we would have additional questions.

BestRegards

0 Vijaya Ceekala over 7 years ago in reply to na na78

TI__Intellectual 2930 points

Variation in the latency is caused by the presence of synchronizers and FIFOs in the Serializer data path. If this answers your question, please close the thread

Regards
Vijay
