TPS65987D: How to connect to Type C CN & USB MUX Switch

Sophia Cheng

Part Number: TPS65987D

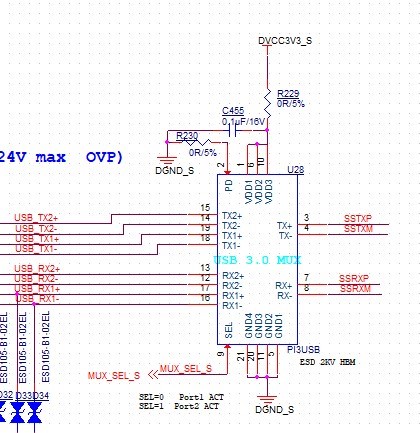

I will use TPS65987D and Type C Connector connect to a USB 3.0 Signal switch , it's PI33USB302.

CC1 &CC2 signal will be connected to TPS65987D PIN#24 &#26,

Does there have any signal will output from TPS65987D to tel the Type C Connector is CC1 side plug in ? or CC2 side plug in?

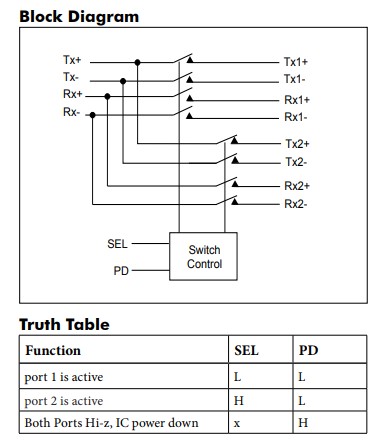

I don't know how to connect the CC1/CC2 signal output from TPS65987D to PI33USB302 Switch ( Pin#9) to determine Type c input signal side.

Could you give me some advice?

Thank you very much.

BRs,

Sophia

over 6 years ago

0 Eric Beljaars over 6 years ago

TI__Mastermind 36756 points

Hi Sophia,

You could use any of the GPIOs on the TPS65987D for this application. Each GPIO is configurable through our Application Customization GUI that can be downloaded from here:

To read about each configurable GPIO event, please refer to the following App Note:

If this answers your question, PLEASE select This resolved my issue

Thank you,
Eric

0 Eric Beljaars over 6 years ago in reply to Eric Beljaars

TI__Mastermind 36756 points

Hello,

I have not heard back from you in a while.

If I answered your question, PLEASE select This resolved my issue

Thank you,
Eric
