XIO2001: Question for IDSEL

Oba

Part Number: XIO2001

Hello,

I have a question for IDSEL connection.

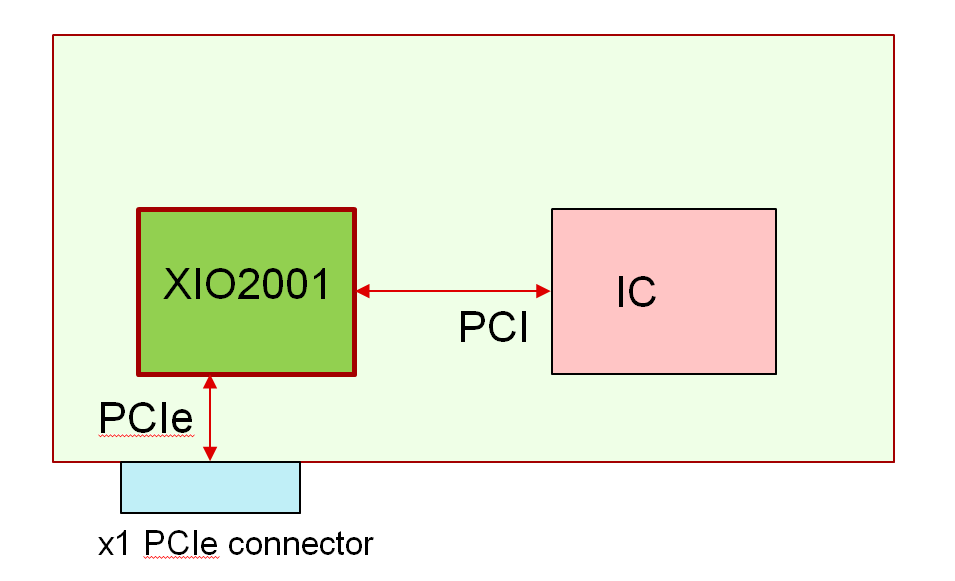

Now there is a case like the below, XIO2001 is connected to PCIe x 1 connector and there is only one PCI device on the PCI bus from XIO2001.

In this case, only one device on the PCI bus, does IDSEL have to be connected?

And if yes, could you tell me how to decide ID number?

Regards,

Oba

over 6 years ago

0 Malik Barton57 over 6 years ago

TI__Guru 64326 points

Oba,

Could you repost image? I am unable to see it.

0 Oba over 6 years ago in reply to Malik Barton57

TI__Genius 17355 points

Malik,

Sorry, I attached again.

Regards,
Oba

0 Malik Barton57 over 6 years ago in reply to Oba

TI__Guru 64326 points

Oba,

IDSEL for each PCI bus device must be resistively coupled (100 Ω) to one of the address lines between AD31 and AD16. Please see Table 6 in the XIO2001 Data Manual for the configuration register transaction device number to AD bit translation chart.

0 Oba over 6 years ago in reply to Malik Barton57

TI__Genius 17355 points

Hi,

Thanks. What device number in the table 6 should I use for this case? How to decide the device number?
Does the device number=00000 (A16) work in this case?

Regards,
Oba

0 Malik Barton57 over 6 years ago in reply to Oba

TI__Guru 64326 points

Oba,

Yes A16 can work in this case. Please see attached document for reference.

IDSEL connection.pdf
