Hi Kevin,

I did not get the attachment.  It could be due to the system topology and mux settings.

Regards,

Lee

AGC7648S_SerDesMux.pdf

Dear Lee,

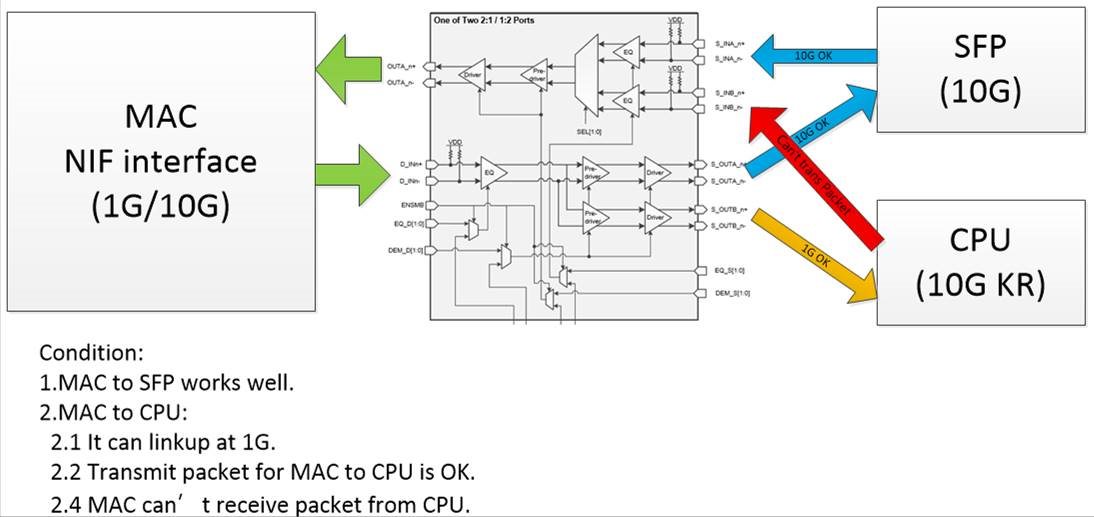

Feedback from the customer:

Our register setting as below:

General

i2c write 0 0x59 0x01 0x00

i2c write 0 0x59 0x02 0x01

i2c write 0 0x59 0x06 0x18

i2c write 0 0x59 0x08 0x0c

i2c write 0 0x59 0x5E 0x07

i2c write 0 0x59 0x17 0xED

i2c write 0 0x59 0x18 0x00

i2c write 0 0x59 0x2d 0xED

i2c write 0 0x59 0x2E 0x00

i2c write 0 0x59 0x34 0xAD

i2c write 0 0x59 0x35 0x00

i2c write 0 0x59 0x0f 0x00

MAC-to-P48

i2c write 0 0x59 0x16 0x2f

i2c write 0 0x59 0x5F 0xF0

MAC-to-CPU

i2c write 0 0x59 0x16 0x00

i2c write 0 0x59 0x5F 0x00

BR

Kevin

Hi Kevin,

I would leave the register 0x16 programming at the correct value for the application ( seems like you want the value = 00'h)

I would leave the DOUT_0 programmed to PCIe3 / 10G-KR mode ( program register 0x16 = AD'h)

Did you also try with pin controls?

Regards,

Lee

Dear Lee,

The customer had try 0x16 set to AD’h, but it didn’t work.

Do you have the updated datasheet?

Because the datasheet online did not suggest us 0x16=AD’h as an option.

Attachment is the datasheet I found on the website, is it the up to date version?

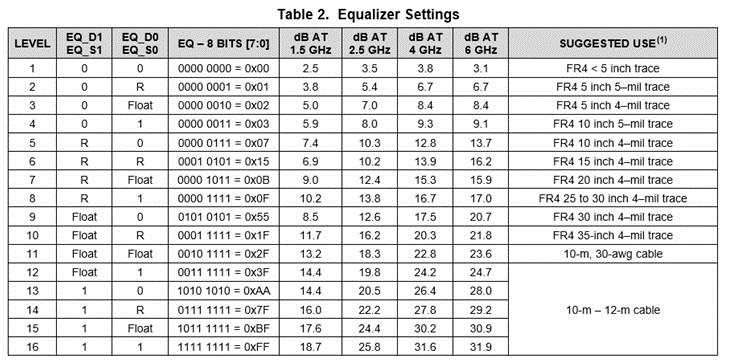

(Can’t find 0xAD on Table2)
