TVS2700: The relationship of maximum watt rating and selection of clamp component

Jimmy Lin

Part Number: TVS2700

The TVS2700 is a clamp component with the maximum watt is equal to 1250 watt, which is based on IEC 61000-4-5 Power 8/20 µs maximum surge pulse
How to acquire and calculate the maximum watt of the TVS component TVS2700?

Would you please provide the relationship of maximum watt rating calculation and selection of clamp component?

over 6 years ago

0 Alec Forbes over 6 years ago

TI__Expert 3500 points

Jimmy-

As you listed, the maximum wattage of the part is 1250W when exposed to an IEC61000-4-5 pulse which has a 20us half length. Based on the length of the pulse that is applied, the wattage will change significantly. What sort of a pulse are you looking to test against?

Thanks,

Alec

0 Jimmy Lin over 6 years ago in reply to Alec Forbes

Prodigy 110 points

Both 8us/20us and 10us/1000us surge pulse test are needed for testing

0 Alec Forbes over 6 years ago in reply to Jimmy Lin

TI__Expert 3500 points

Jimmy-

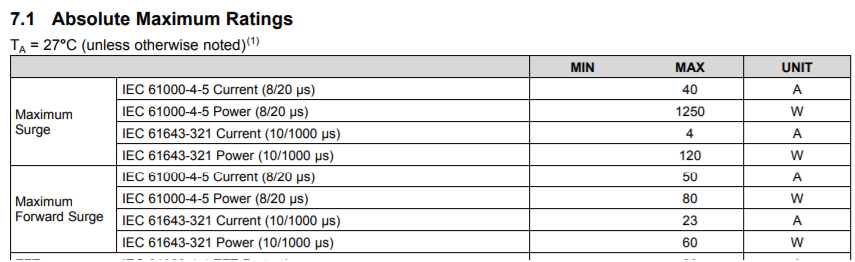

The device datasheet lists maximum power and current dissipation for both 8/20us and 10/1000us. Does this answer your questions?

Thanks,

Alec
