TUSB546A-DCI: TUSB546 Layout placement

Hugo Liu

Genius 5095 points

Part Number: TUSB546A-DCI

Hi Sir,

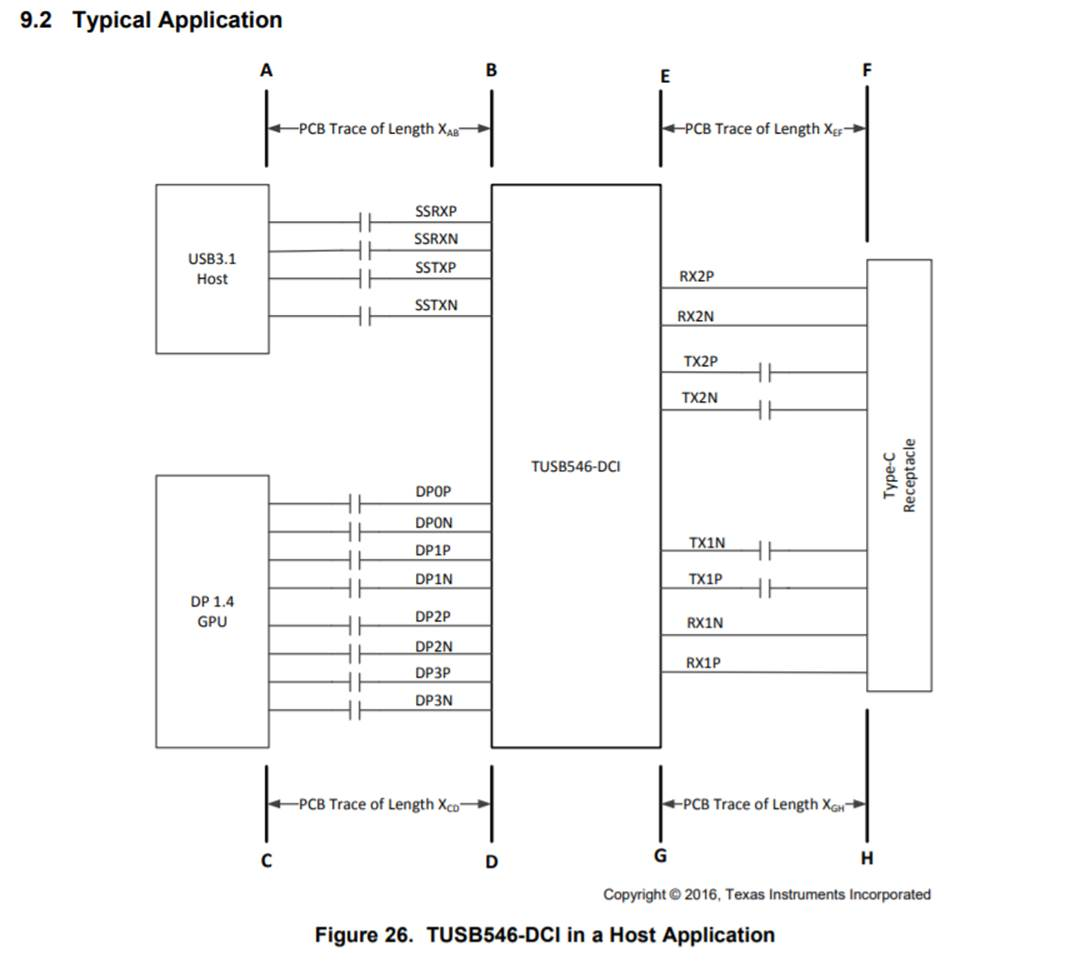

TUSB546 datasheet 9.2 Typical application is show the XEF=2 inches.

But limited by PCB size is 4~6 inches in our PCB layout.

Is this affect TUSB546 performance? any risk?

Hugo

over 6 years ago

0 David (ASIC) Liu over 6 years ago

TI__Guru**** 177241 points

Hugo

TUSB546 is a linear re-driver and does not have any driving capability on its TX. Maximum is 4in trace between TUSB546 and Type C Receptacle (XEF).
