HD3SS215: 4X2 NON-MATRIX SWITCHER

Chandana Tadipaneni

Part Number: HD3SS215

Hai,

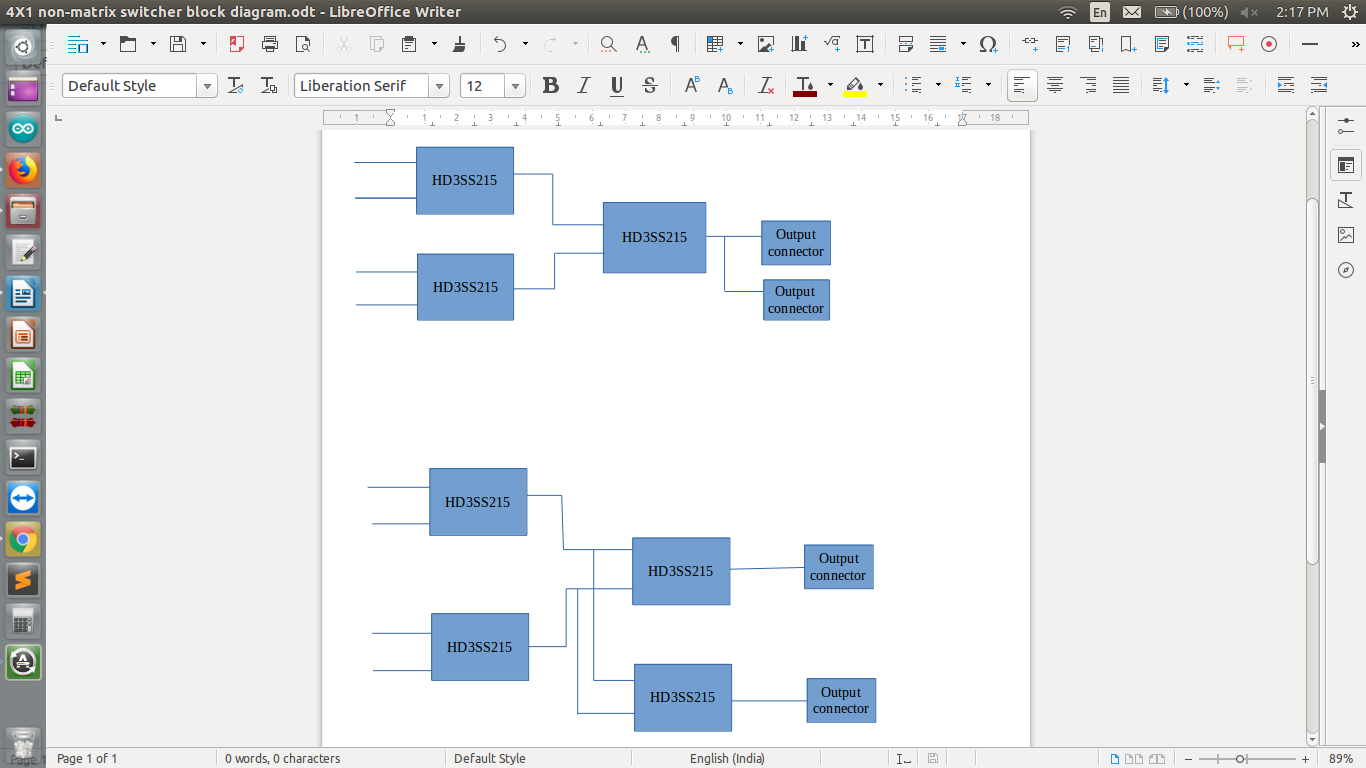

Can anyone help me to build 4X2 non-matrix switcher with HD3SS215 chip. I am attaching block diagrams related to my requirement. Please, suggest me which one is suitable one. If anyone are having any idea regarding my requirement please share the schematic so it would be helpful for me.

1. In first block diagram, two HDMI output connectors are parallely

2. In second block diagram, two HD3SS215 have parallel connection to have different HDMI connector at output.

please suggest me which is best option. Let me know if there are any losses going to faced with the block diagram.

Thanks & Regards,

Chandana.

over 6 years ago

0 David (ASIC) Liu over 6 years ago

TI__Guru**** 180021 points

Chandana

Please see the block diagram I proposed to you, you can't share the same HDMI signal between two HD3SS215.

e2e.ti.com/.../754544

Thanks
David

0 Chandana Tadipaneni over 6 years ago in reply to David (ASIC) Liu

Intellectual 440 points

Hai David,

I am having " 4X2 NON-MATRIX SWITCHER " requirement also, So, please tell me whether the block diagram shared with you is suitable or not?

Thanks & Regards,

Chandana.

0 David (ASIC) Liu over 6 years ago in reply to Chandana Tadipaneni

TI__Guru**** 180021 points

Chandana

I don't see how the input and output can be split and shared in the block diagram. I think you need additional HD3SS215.

Thanks
David

0 Chandana Tadipaneni over 6 years ago in reply to David (ASIC) Liu

Intellectual 440 points

Hai David,

If you have any modification in the circuit diagram or else if you have the circuit diagram for 4X2 non-matrix switcher. Please, share me with i have an urgent requirement for my client.

Thanks & Regards,
Chandana.

0 Chandana Tadipaneni over 6 years ago in reply to Chandana Tadipaneni

Intellectual 440 points

Please, let me know if their is any update on this.

0 David (ASIC) Liu over 6 years ago in reply to Chandana Tadipaneni

TI__Guru**** 180021 points

Chandana

Can you please highlight the different requirement between your matrix and non-matrix switch implementation? For your non-matrix implementation, it looks like the four inputs can still go to either one of the two output connectors.

Thanks
David
