TPS65987-90EVM: What is difference between TPS65987EVM and TPS65987-90EVM?

K.Yaita

Part Number: TPS65987-90EVM

Hi Team,

There is TPS65987EVM and TPS65987-90EVM
What is difference between these EVM?

- TPS65987EVM ($199)
http://www.ti.com/tool/tps65987evm

- TPS65987-90EVM ($299)
http://www.ti.com/tool/tps65987-90evm

Best Regards,
Yaita

over 6 years ago

0 Rahul Sharma16 over 6 years ago

TI__Expert 6430 points

Hi Yaita,

I'll have someone to get back to you with differences.

Thanks,
Rahul

0 Jacob Ontiveros over 6 years ago

TI__Expert 6280 points

Hi Yaita,

Use the EVM below. This is the updated version and there were some cost optimizations done.

- TPS65987EVM ($199)

Jacob

0 K.Yaita over 6 years ago in reply to Jacob Ontiveros

Guru 29720 points

Hi Jacob-san,

Thank you for your reply.

It seems user's guide of TPS65987EVM ($199) is identical with TPS65987-90EVM ($299).
Is it correct?
If the answer is yes, I understand schematic and BOM, function is the same however I can't catch the difference between these EVMs.
Why TPS65987-90EVM ($299) remains in existence if these EVMs are completely identical?

Best Regards,
Yaita

0 Jacob Ontiveros over 6 years ago in reply to K.Yaita

TI__Expert 6280 points

Hi Yaita-san,

There should be an update to the BOM. If you look at the top image of the PCB you will notice that there is a device that is DNP on the older version. I think the new User's Guide was not link to the new EVM. I will reach out to the team to correct this.

Jacob

0 K.Yaita over 6 years ago in reply to Jacob Ontiveros

Guru 29720 points

Hi Jacob-san,

I understand .
I will wait and check after your team's correction.

Best Regards,
Yaita

0 K.Yaita over 6 years ago in reply to K.Yaita

Guru 29720 points

Hi Jacob-san,

Do you know when will correction updated on web site?
I want to suggest TPS65987EVM (lower cost than TPS65987-90EVM) to my customer however there isn't correct schematic and BOM at this time.

Best Regards,
Yaita

0 Eric Beljaars over 6 years ago in reply to K.Yaita

TI__Mastermind 36756 points

Hi Yaita-san,

The updated schematic and BOM should be available on TPS65987EVM page soon.

Thank you,
Eric

0 K.Yaita over 6 years ago in reply to Eric Beljaars

Guru 29720 points

Hi Eric-san,

I found TPS65987-90EVM is deleted and there is TPS65987EVM only for EVM of TPS65987D.
However user's guide shows TPS65987-90.
http://www.ti.com/tool/tps65987evm

Is the user's guide for TPS65987EVM?

Best Regards,
Yaita

0 Eric Beljaars over 6 years ago in reply to K.Yaita

TI__Mastermind 36756 points

Hi Yaita-san,

The document is the same for the TPS65987EVM and can be found at the link you included.

Thank you,
Eric

0 K.Yaita over 6 years ago in reply to Eric Beljaars

Guru 29720 points

Hi Eric-san,

Do you refer user's guide of TPS65987EVM($199) and TPS65987-90EVM($299) is the same?
I have TPS65987-90EVM that I bought the other day and want to know what is the difference between TPS65987EVM and TPS65987-90EVM.
If there is no difference it is okay however would like to confirm.

Best Regards,
Yaita

0 K.Yaita over 6 years ago in reply to K.Yaita

Guru 29720 points

Eric-san,

May I have your comments?

Best Regards,
Yaita

0 K.Yaita over 6 years ago in reply to K.Yaita

Guru 29720 points

I have TPS65987-90EVM that I bought the other day and want to know what is the difference between TPS65987EVM and TPS65987-90EVM..
It is okay if these are the exact same boards... just would like to confirm it.

Best Regards,
Yaita

0 K.Yaita over 6 years ago in reply to K.Yaita

Guru 29720 points

May I have your comments??

0 Eric Beljaars over 6 years ago in reply to K.Yaita

TI__Mastermind 36756 points

Hi Yaita-san,

These boards are the same.

Thank you,
Eric

0 K.Yaita over 6 years ago in reply to Eric Beljaars

Guru 29720 points

Hi Eric-san,

I found user's guide of EVM was deleted from the following page..
http://www.ti.com/tool/tps65987evm#technicaldocuments

Could you kindly check it?

Best Regards,
Yaita

0 K.Yaita over 6 years ago in reply to K.Yaita

Guru 29720 points

Where should we find user's guide of TPS65987EVM?

Best Regards,
Yaita

0 K.Yaita over 6 years ago in reply to K.Yaita

Guru 29720 points

May I have your comments?

Best Regards,
Yaita

0 Eric Beljaars over 6 years ago in reply to K.Yaita

TI__Mastermind 36756 points

Yaita-san,

You can access the TPS65987-90EVM user's guide here:

http://www.ti.com/lit/ug/slvubf3a/slvubf3a.pdf

Note that the same can be applied to TPS65987EVM.

Thanks,
Eric

0 K.Yaita over 6 years ago in reply to Eric Beljaars

Guru 29720 points

Hi Eric-san,

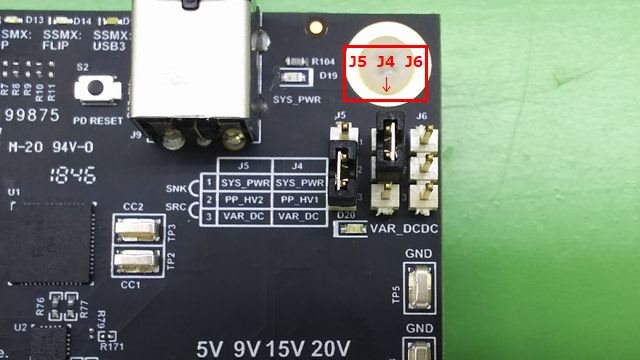

My customer got TPS65987EVM and there is J4 and J5, J6 as the following.

On the other hand, I think the TPS65987EVM doesn't match the following user's guide (page 3-4).
http://www.ti.com/lit/ug/slvubf3a/slvubf3a.pdf
Could you please look into it?

In addition, I would like to know what is jumper configuration of J6 for TPS65987EVM? (How to use J6?)

Best Regards,
Yaita

0 Eric Beljaars over 6 years ago in reply to K.Yaita

TI__Mastermind 36756 points

Hi Yaita-san,

The document is in the process of being updated. J6 is for the PPExternal path. This is unused on the TPS6587EVM since the two internal power paths are used instead.

Thanks,
Eric
